Electric Scooter Charger Guide: Volts & Amps | EcoMotion

Choosing an electric scooter charger involves more than finding a plug that fits. The charger must suit your battery’s voltage and chemistry, deliver an approved charging current, and have the correct connector and wiring.

Whether you need a replacement charger, a spare for work or a faster way to recharge, understanding a few key numbers will help you choose correctly.

Understanding your battery: volts and amp-hours

Electric scooter batteries have two key specifications: nominal voltage, measured in volts (V), and charge capacity, measured in amp-hours (Ah). These describe different things.

Voltage (V) identifies the battery’s electrical voltage class. Many commuter scooters use 36V batteries, while larger scooters commonly use 48V, 52V, 60V or 72V systems. Nominal voltage is a reference rating: the battery’s actual voltage rises during charging and falls as it is used. ^{[1], [2]}

Capacity (Ah) describes how much electrical charge the battery can hold. Scooter capacities are typically expressed as 5Ah, 10Ah, 20Ah or 35Ah and above—not 5mAh or 35mAh. 1Ah equals 1,000mAh, so a 20Ah battery is also a 20,000mAh battery.

At the same voltage, a larger Ah rating generally means more stored energy and potentially more range. For batteries with different voltages, watt-hours (Wh) are a better energy comparison: nominal V × Ah ≈ Wh. A 36V 10Ah battery, for example, stores approximately 360Wh. Actual range also depends on the scooter, rider, speed, terrain and conditions.

What voltage charger does my electric scooter need?

The battery’s nominal voltage and the charger’s output voltage are usually different. A typical 36V lithium-ion scooter battery, for example, needs a charger that reaches 42V at full charge. ^[2]

Conventional lithium-ion batteries require a defined maximum charging voltage, which is higher than their nominal voltage. Charger specifications may quote a rated or nominal output separately from the maximum output voltage, so check which figure is being shown. ^{[1], [13]}

These common pairings are calculated from battery configurations using cells charged to 4.2V each. They are a guide, not a universal compatibility chart. Some models specify different charging voltages, and other battery chemistries require different chargers. Always confirm the exact specification in the scooter manual or on a verified original charger. ^{[1], [2]}

Why do some 48V chargers say 53.5V or 53.6V?

These figures can refer to different ratings. NIU’s KQi2 Pro and KQi3 Pro/Sport manuals list 53.5V rated charger output, but specify 54.6V battery charging voltage. The original ZT3 Pro charger label similarly states 53.6V at 1.3A rated output and 54.6V maximum (no load). A lower rated-output figure therefore does not, by itself, establish a lower full-charge cutoff. Follow the manufacturer’s specification for the exact model; chargers marketed for “48V” batteries are not automatically interchangeable. ^{[11], [12], [13]}

EcoMotion’s Segway 3.9A fast charger is labelled 53.6V at 3.9A and approved by Segway for the ZT3 Pro. Compared with the 1.3A unit, it can supply three times the current during the main charging stage. The higher current speeds up charging; it does not raise the battery’s permitted charging voltage. Complete charging time still depends on current tapering and the scooter’s charging controls. ^{[3], [14]}

Do not choose a higher-voltage charger to make charging faster. Excessive charging voltage can damage the battery and create a fire risk. ^[4]

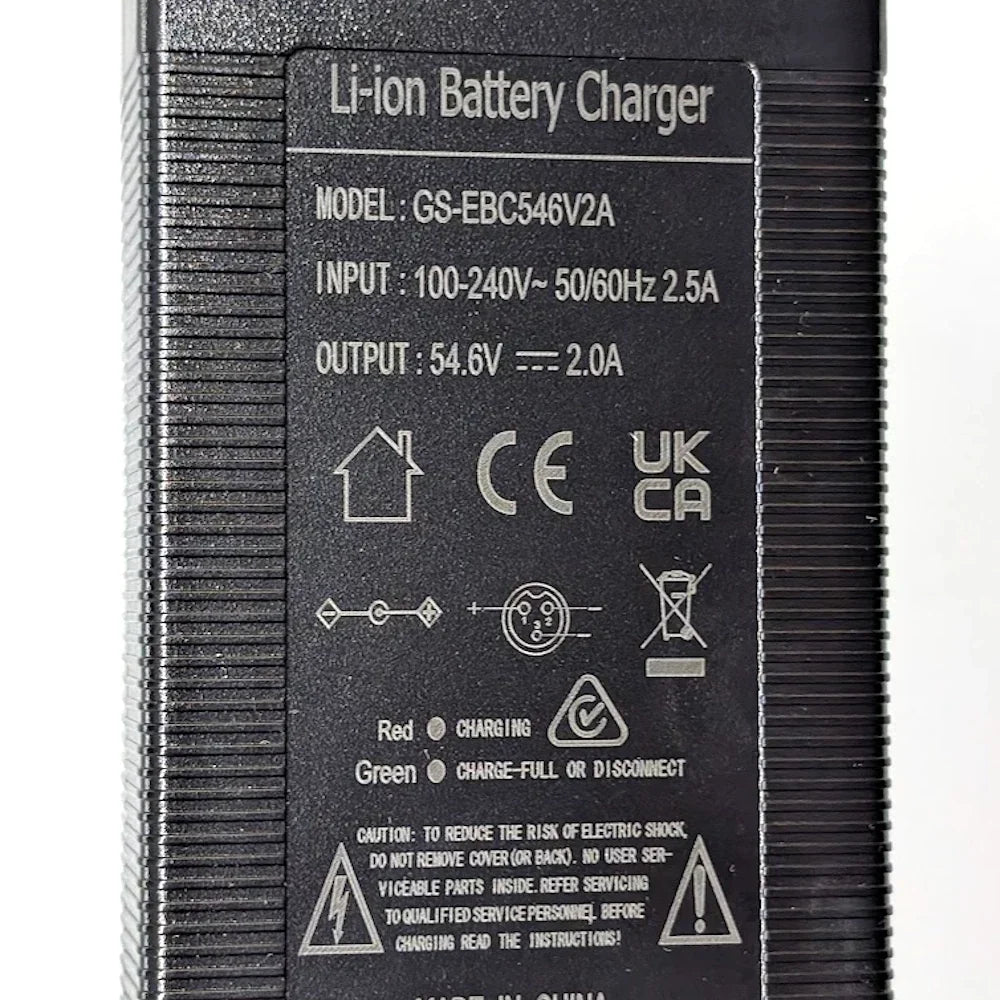

How to read an electric scooter charger label

Look for the Output line when checking the voltage and current delivered to the battery. The Input line describes the mains electricity supplied to the charger. Also check whether a voltage is described as rated, maximum or no load.

The charger pictured is therefore a 54.6V 2A charger. Voltage and current alone do not establish compatibility with a particular scooter.

This label also states that a red light means charging, while green means either fully charged or disconnected. A green light by itself does not prove that the battery has charged. Indicator behaviour varies between chargers.

What do charger amps mean—and how long will charging take?

The charger’s amperage, measured in amps (A), describes its charging-current rating. During the main charging stage, an approved 4A charger can deliver approximately twice the current of a 2A charger, replenishing charge more quickly. ^[3]

Many smaller scooters come with chargers around 1.5A to 2A, although standard charger ratings vary by model. A charger advertised as “fast” usually provides more current than the standard charger for the scooter it is designed to charge.

For a simple estimate, use: theoretical charging time (hours) = charge to replace (Ah) ÷ charging current (A).

If you theoretically need to replace the full 20Ah in a 20Ah battery:

Put another way, 2A × 10 hours = 20Ah, while 4A × 5 hours = 20Ah. These examples assume constant current throughout.

In practice, lithium-ion charging slows near full charge. The charger holds the specified voltage while the current gradually falls. A full recharge will generally take longer than this simple estimate, and doubling the charger current will not necessarily halve the complete charging time. ^[3]

If the battery is only half depleted, less charge needs replacing. Charging time also varies with temperature, battery condition and the charging system’s limits.

Can I use a fast charger?

Yes, if the scooter or battery manufacturer confirms that the charger and its charging current are suitable for your exact model. A larger battery does not automatically mean every fast charger is suitable.

Before upgrading, confirm:

• Charging voltage and battery chemistry: both must match the manufacturer’s specification.
• Maximum permitted charge current: the battery cells, battery management system (BMS), charging port, wiring and any charge-control electronics must support it.
• Connector and wiring: plug dimensions, positive and negative polarity, and pin assignments must match.
• Any communication requirements: some charging systems need a compatible charger that communicates with the scooter or battery.
• Combined current: if the scooter supports two chargers, add their currents together. Two 2A chargers can supply approximately 4A in total; use this arrangement only when approved for that model.

Matching plug shapes or adding an adapter does not establish electrical compatibility. The BMS is a protective system, not a substitute for choosing the correct charger. ^[4]

Understanding the “25% rule” for fast charging

You may see advice to keep charging current at or below 25% of the battery’s Ah rating. In battery terminology, this is a 0.25C charge rate: a current that would theoretically replace the battery’s rated charge in four hours.

The comparison is calculated as battery capacity in Ah × 0.25 = charging current in A.

Under this guideline, a 3A charger exceeds 0.25C on a battery smaller than 12Ah, and a 4A charger exceeds 0.25C on a battery smaller than 16Ah.

However, 0.25C is not a universal safety limit. Some batteries support higher rates, while other scooters’ batteries or charging components may require lower currents. Manufacturers specify different charging capabilities; Apollo, for example, expressly approves its 5A fast charger for the Apollo Go. ^{[1], [5]}

The 12Ah and 16Ah figures are comparison points, not permission to use a 3A or 4A charger. Do not upgrade on battery capacity alone. If the manufacturer’s approved charging current is unknown, use the original charger or a replacement it recommends.

Does fast charging affect battery life?

Higher charging currents can increase heat and battery stress, potentially accelerating ageing. The effect depends on the cells, charge rate, temperature and charging-system design; an approved fast charger does not automatically cause the same amount of wear in every battery. ^[6]

For routine charging, use the manufacturer’s standard or recommended charger when you have enough time. An approved fast charger can be useful when you need a quicker turnaround. Allow a warm battery to cool after riding, and follow the model’s permitted charging-temperature range. ^[10]

Should I charge my electric scooter every day?

Charge according to how much energy you have used and the range you need for your next ride. Daily charging is not automatically harmful, and lithium-ion batteries do not need to be completely drained before recharging. ^[7]

Partial top-ups are normal. Each time you plug in does not count as one complete charge cycle: several partial uses and recharges can together amount to an equivalent full cycle. ^[7]

If you already have enough charge, an unnecessary top-up may offer little benefit. The more useful habits are to avoid excessive heat, repeated deep depletion and prolonged storage at full charge. High charge levels combined with heat can accelerate battery degradation. ^{[8], [9]}

Charge fully when you need the range, and follow the manufacturer’s instructions for full charging and battery maintenance. If your scooter offers a manufacturer-supported charge limit, use it according to those instructions.

For longer storage, follow the scooter’s specified storage charge level and check the battery periodically. Keep it cool and dry, and do not allow it to remain completely discharged. ^{[8], [10]}

Safe charging habits

• Use a charger supplied or recommended by the scooter manufacturer.
• In Australia, look for the Regulatory Compliance Mark (RCM) and buy from a reputable supplier. The mark does not establish compatibility with every scooter.
• Charge on a hard, non-flammable surface, with ventilation around the charger.
• Keep the charger, charging port and connections dry.
• Charge while you are awake and able to monitor it. Avoid charging overnight while asleep or leaving it unattended.
• Keep charging equipment away from flammable materials and clear of doorways and escape routes.
• Disconnect the charger when charging is complete.
• Stop using equipment with damaged cables, unusual overheating, swelling, leaking or an unusual smell. ^[10]

Look for the Regulatory Compliance Mark (RCM) Tick to identify a certified charger

Need help choosing the right charger?

Before buying, have your scooter’s exact make and model, battery voltage and capacity, and a clear photo of the original charger’s label and charging plug ready.

Browse EcoMotion’s electric scooter chargers, or contact EcoMotion for help checking the specifications before you order.
