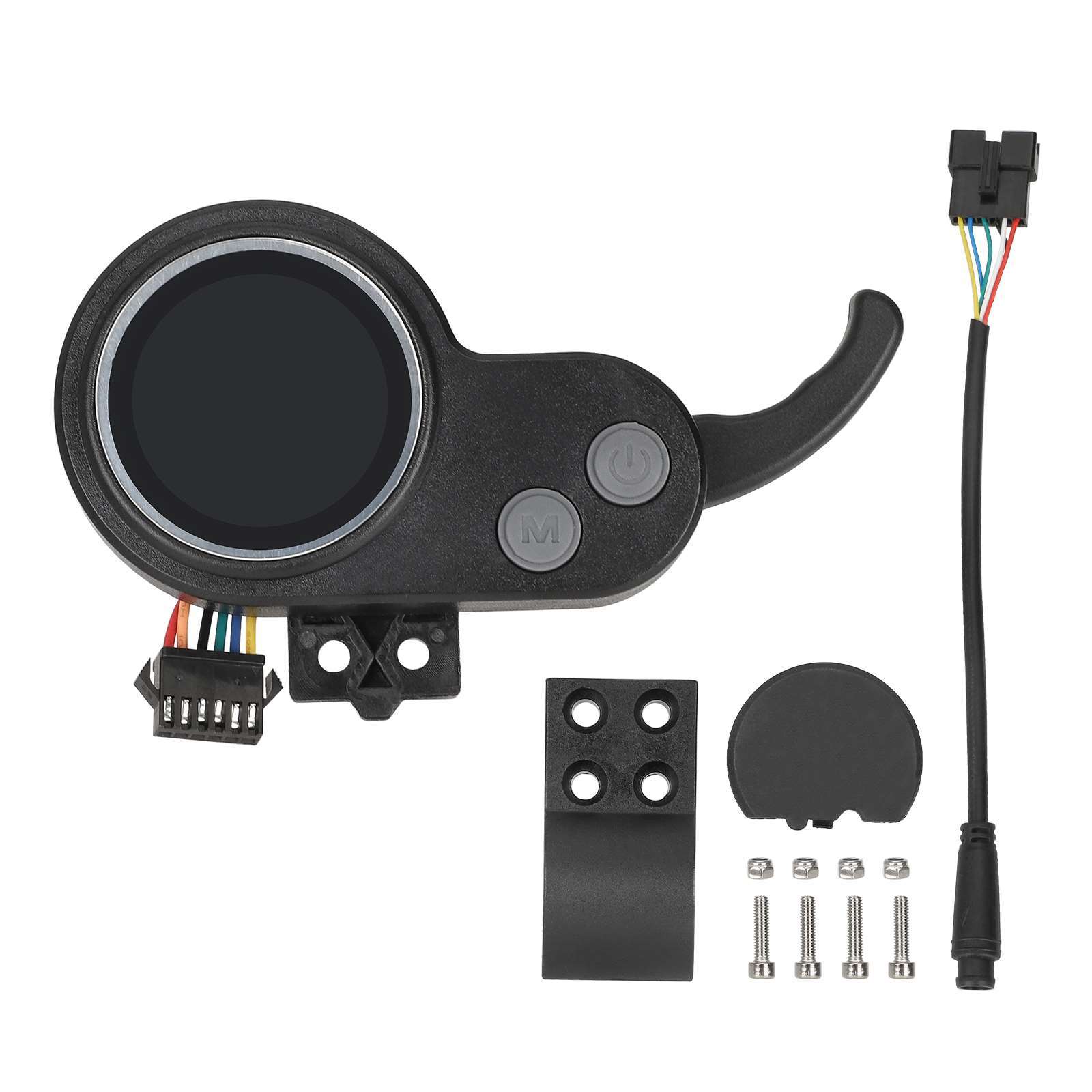

JP J&P 36V–60V universal trigger throttle with colour LCD display

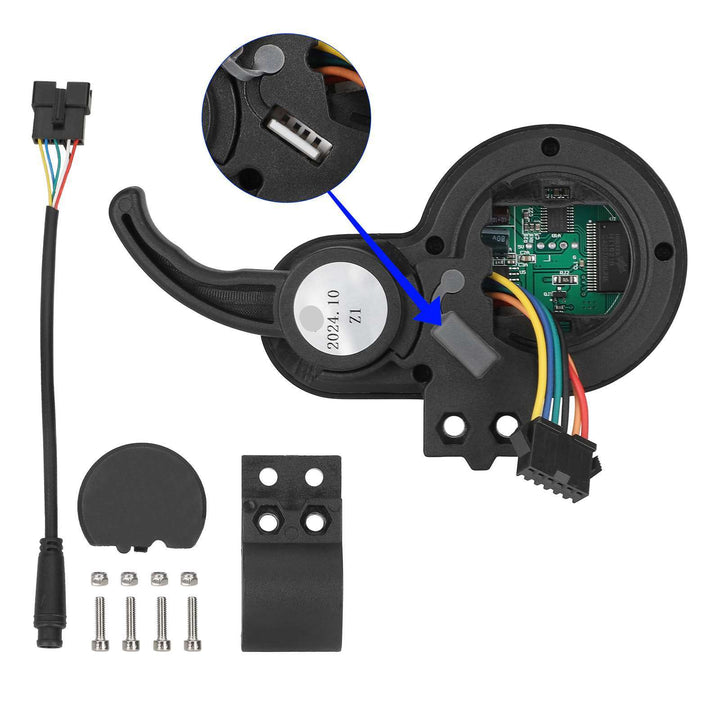

Rear view of JP J&P QS-S4 style trigger throttle showing internal wiring

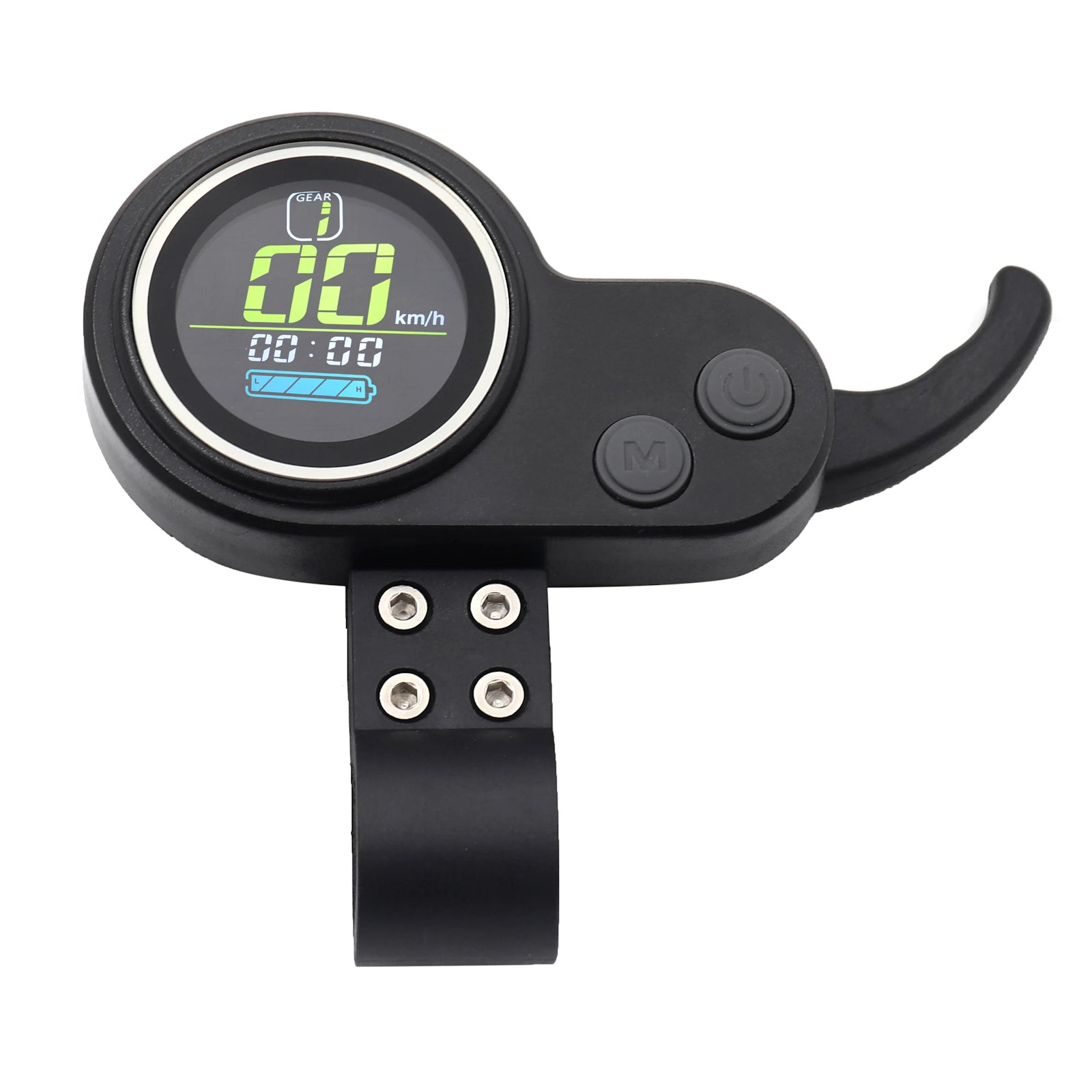

JP J&P 36V–60V universal trigger throttle, shown with colour LCD display illuminated

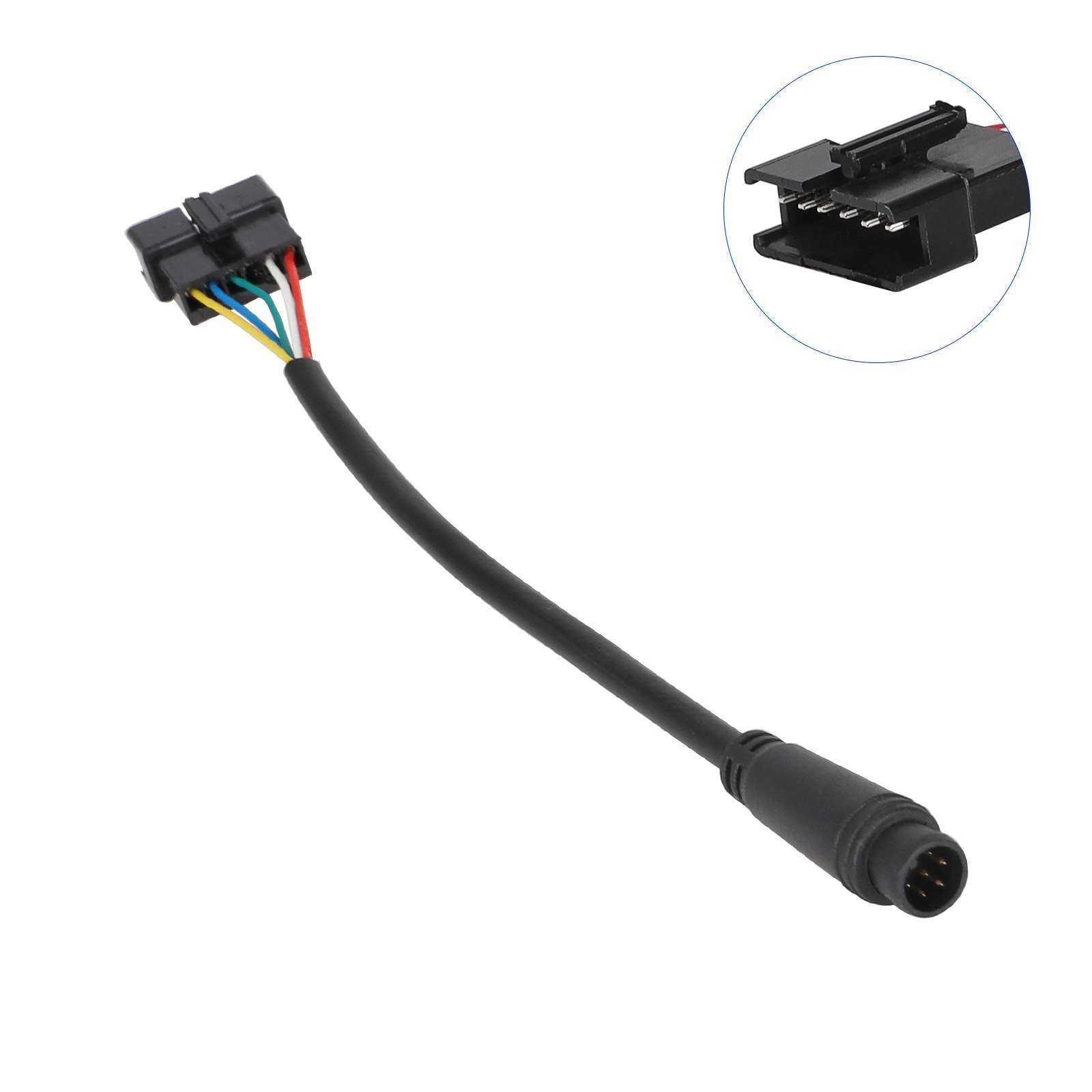

6-pin male waterproof Julet connector on flat head connector cable

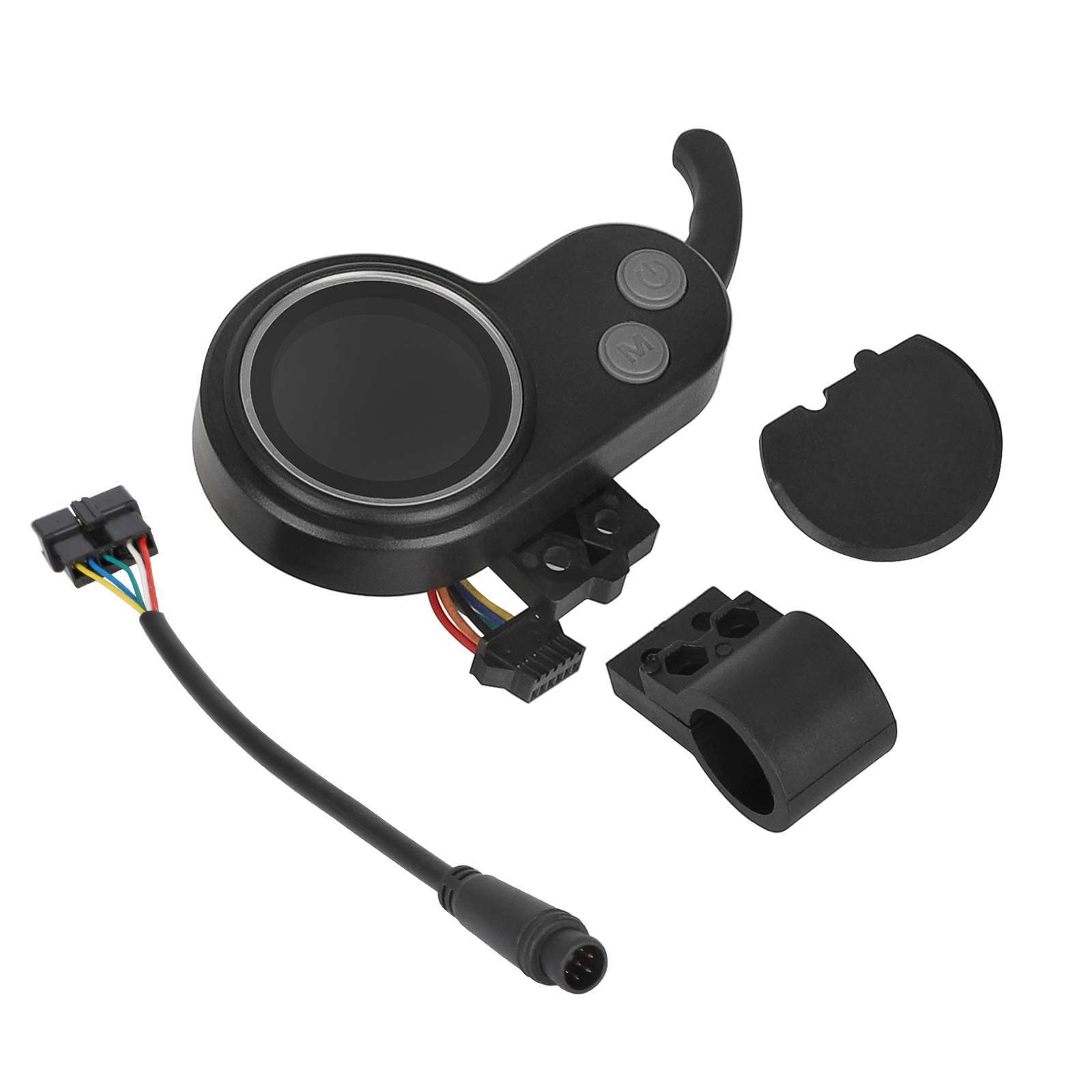

Handlebar clamp and 6-pin flat to round conversion plug for the JP trigger throttle

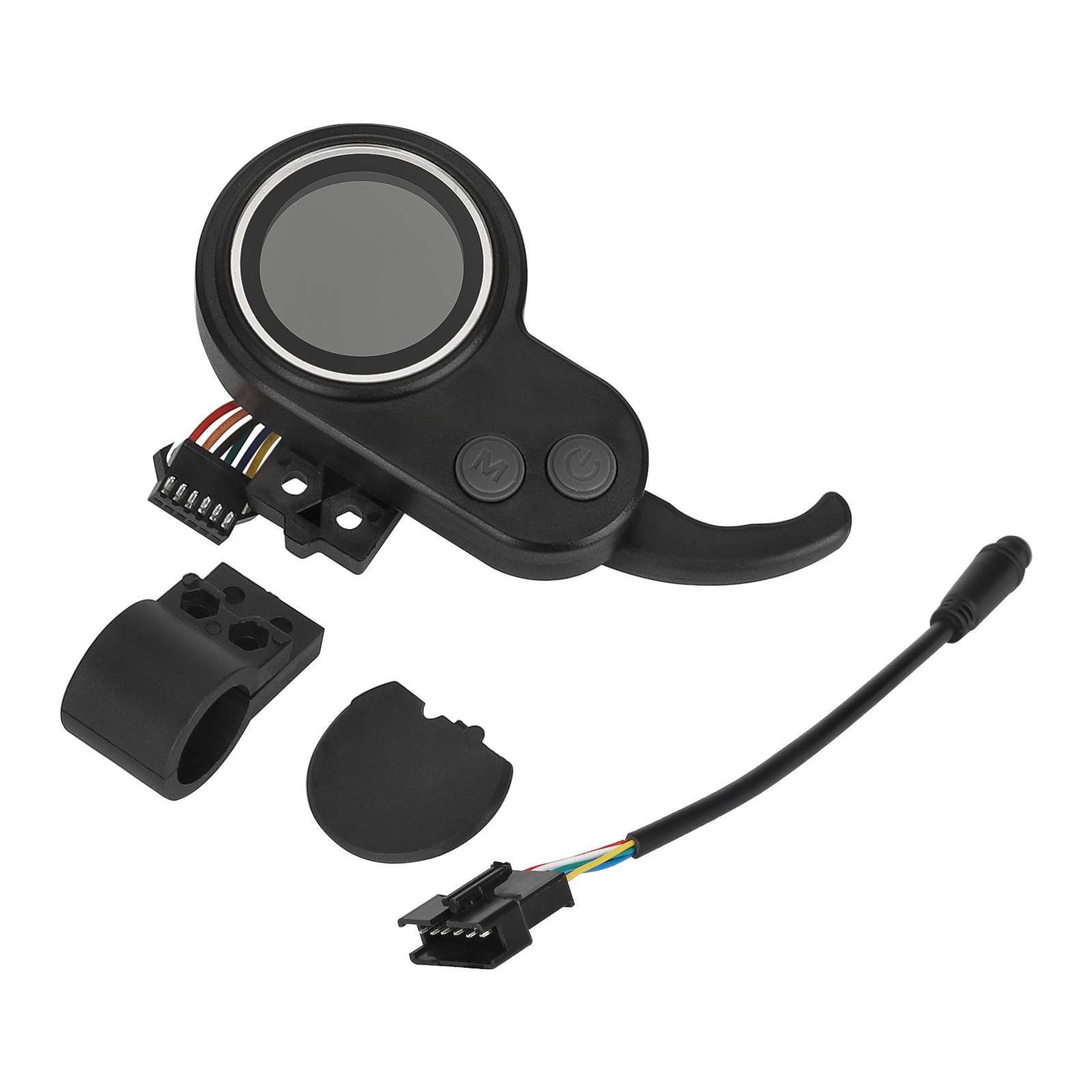

Handlebar clamp and 6-pin flat to round Julet connector plug for the JP trigger throttle

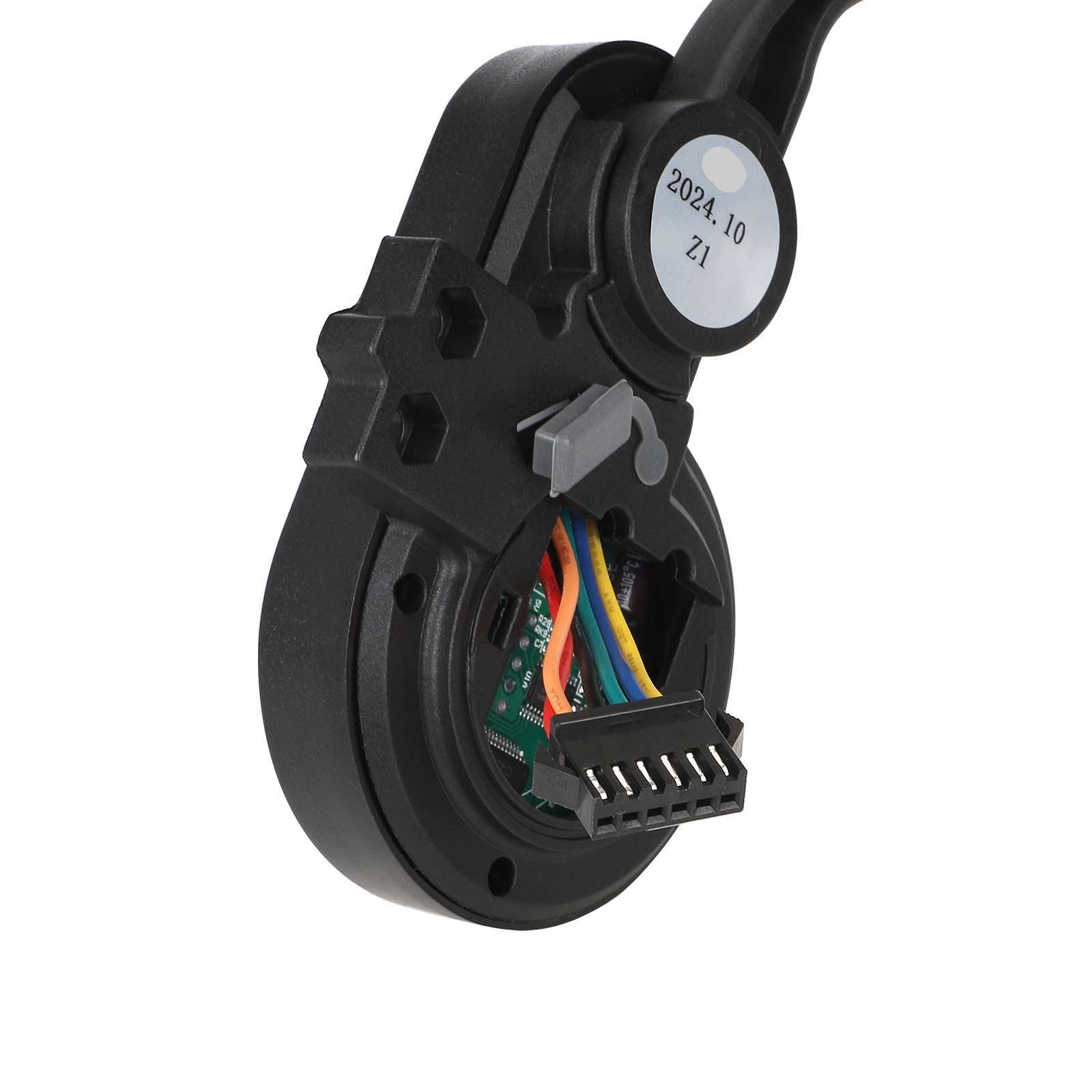

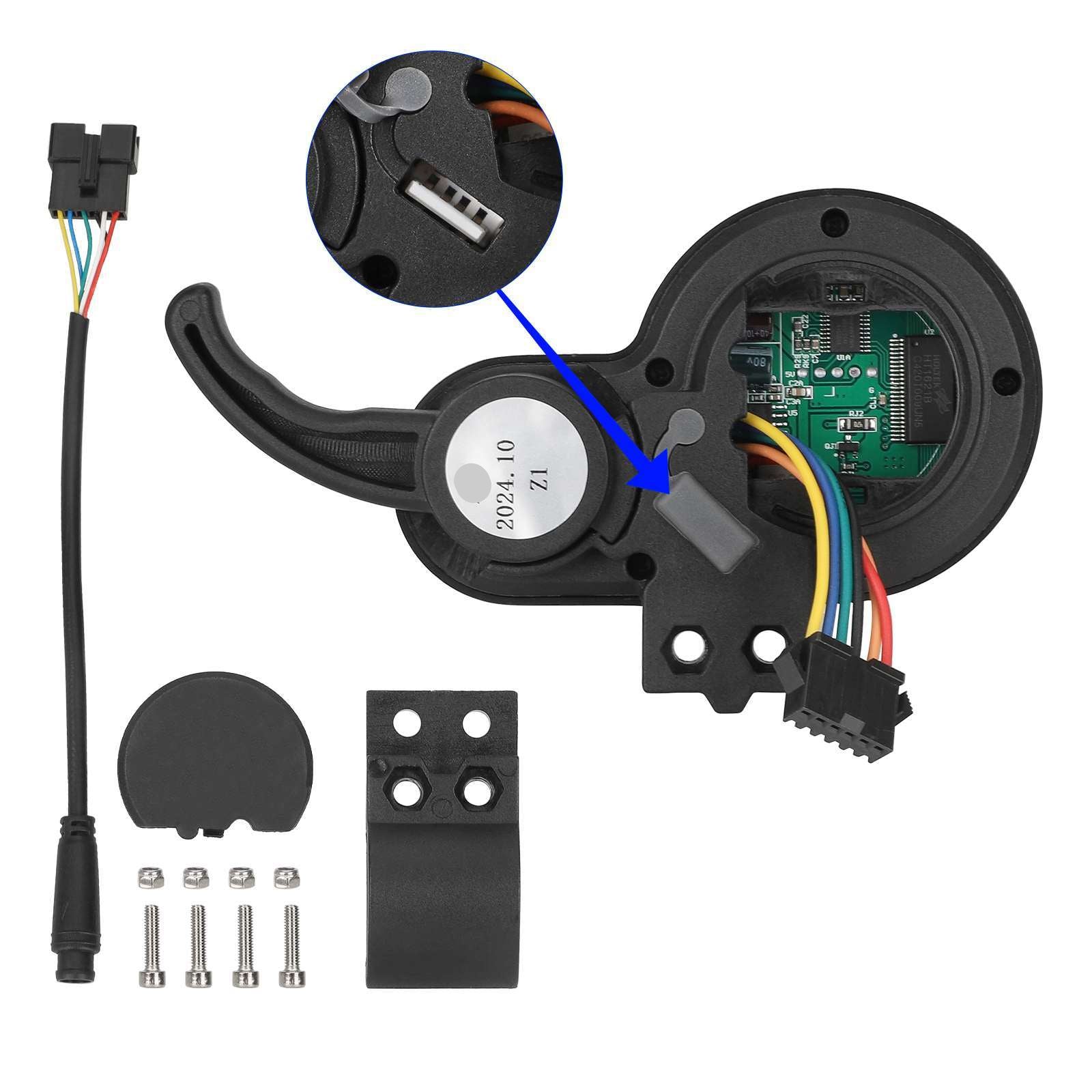

Rear view of JP J&P trigger throttle showing internal wiring

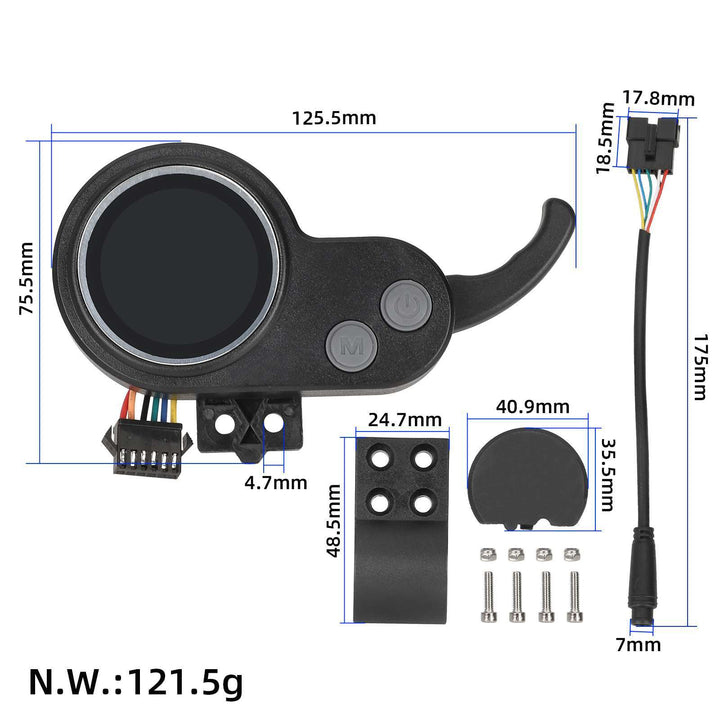

JP J&P trigger throttle, munting hardware and connector plug dimensions and measurements

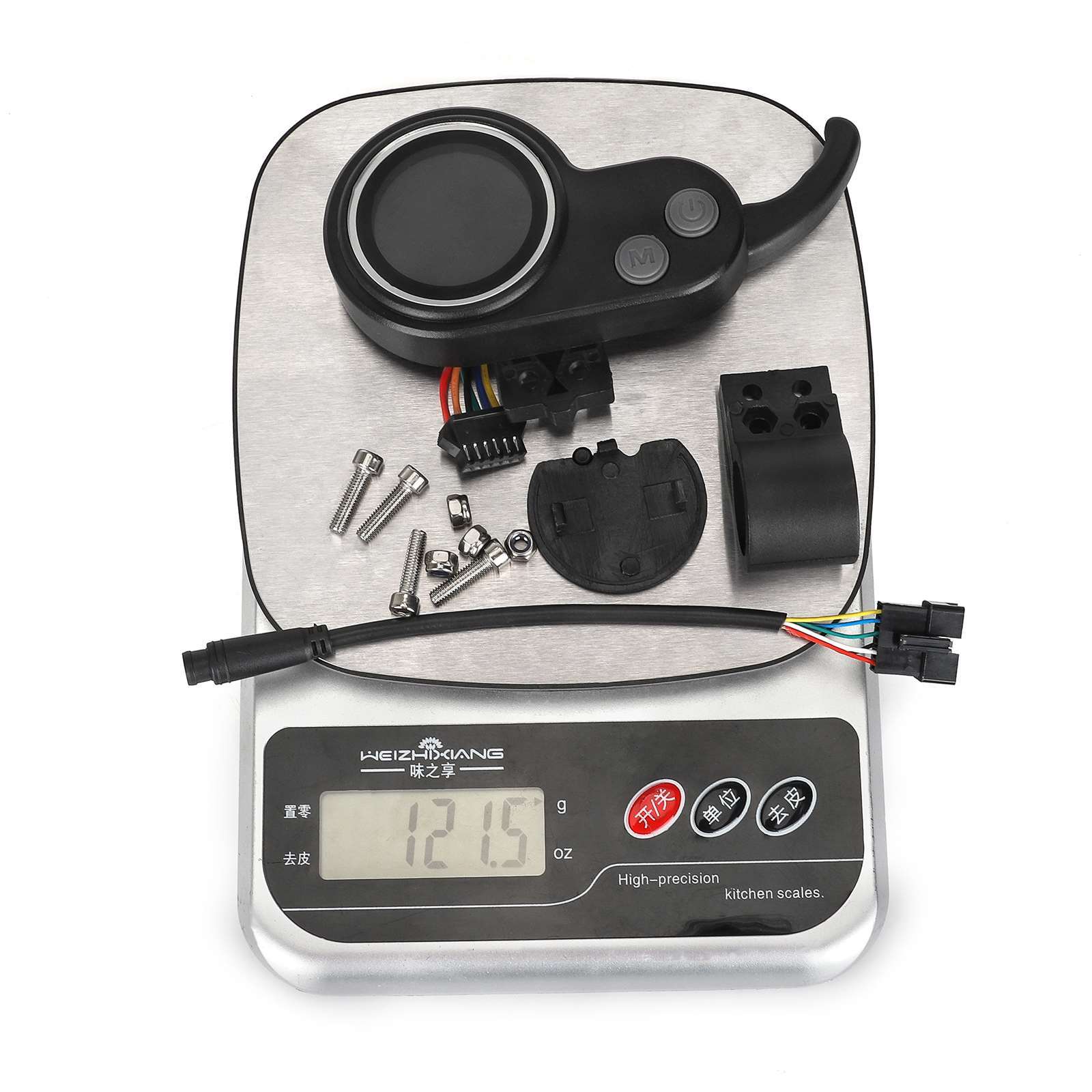

JP J&P trigger throttle showing weight of 121.5 grams
JP J&P 36V–60V universal trigger throttle with colour LCD display
Rear view of JP J&P QS-S4 style trigger throttle showing internal wiring
JP J&P 36V–60V universal trigger throttle, shown with colour LCD display illuminated
6-pin male waterproof Julet connector on flat head connector cable
Handlebar clamp and 6-pin flat to round conversion plug for the JP trigger throttle
Handlebar clamp and 6-pin flat to round Julet connector plug for the JP trigger throttle
Rear view of JP J&P trigger throttle showing internal wiring
JP J&P trigger throttle, munting hardware and connector plug dimensions and measurements
JP J&P trigger throttle showing weight of 121.5 grams

Throttle: JP J&P Universal Trigger Throttle 36V–60V with Colour LCD – Flat Head to 6-Pin Julet Extension Cable

$109.99 $99.99 Save 9%
/
Tax included.
  • Ships next business day
  • In stock, ready to ship
  • Backordered, shipping soon

Throttle: JP J&P Universal Trigger Throttle 36V–60V with Colour LCD – Flat Head to 6-Pin Julet Extension Cable

Upgrade or replace your electric scooter throttle with this JP J&P Universal Trigger Finger Accelerator, featuring a full-colour LCD display and wide 36V–60V voltage compatibility.

Designed in the popular trigger form factor, this throttle offers smooth trigger control, clear ride data visibility, and flexible installation thanks to the included flat-head to round 6-pin male waterproof Julet plug converter.

Key Features

  • Universal 36V – 48V - 52V - 60V compatibility

  • Smooth trigger-finger acceleration

  • Bright colour LCD display

  • Includes flat-head → 6-Pin round male Julet plug adaptor

  • Durable housing for daily use

P-Settings

To access: Press BOTH [MODE] and [POWER] button to access P-Settings.

# Setting Common Values/Options
P0 Wheel Diameter (inches) Match your tire size (e.g. 8, 10 or 11)
P1 Low-voltage cut-off
 Voltage threshold to protect the battery (e.g., 31.5 for 36V, 41.5 for 48V)
P2 Pole Number  Used for speedometer calibration (typically 15 or 16)
P3 Speed signal selection Usually set to 0 or 1
P4 Imperial/Metric (Miles or Km) 0 = Kilometers per hour (km/h), 1 = Miles per hour (mph)
P5 Push Start/Zero Start 0 = Zero-start (throttle goes immediately), 1 = Kick-start (must push off first)
P6 Cruise Control 0 = Off, 1 = On (activates after holding speed)
P7 Soft/Hard Start 0 = Strong/instant start, 1 = Soft/smooth start
P8 % of Power (Default 100) 100 = Full speed, lower values (e.g., 50) cap max speed
P9 Electric Brake Strength 0 = Off, 1 = Medium / Low, 2 = Strong braking
