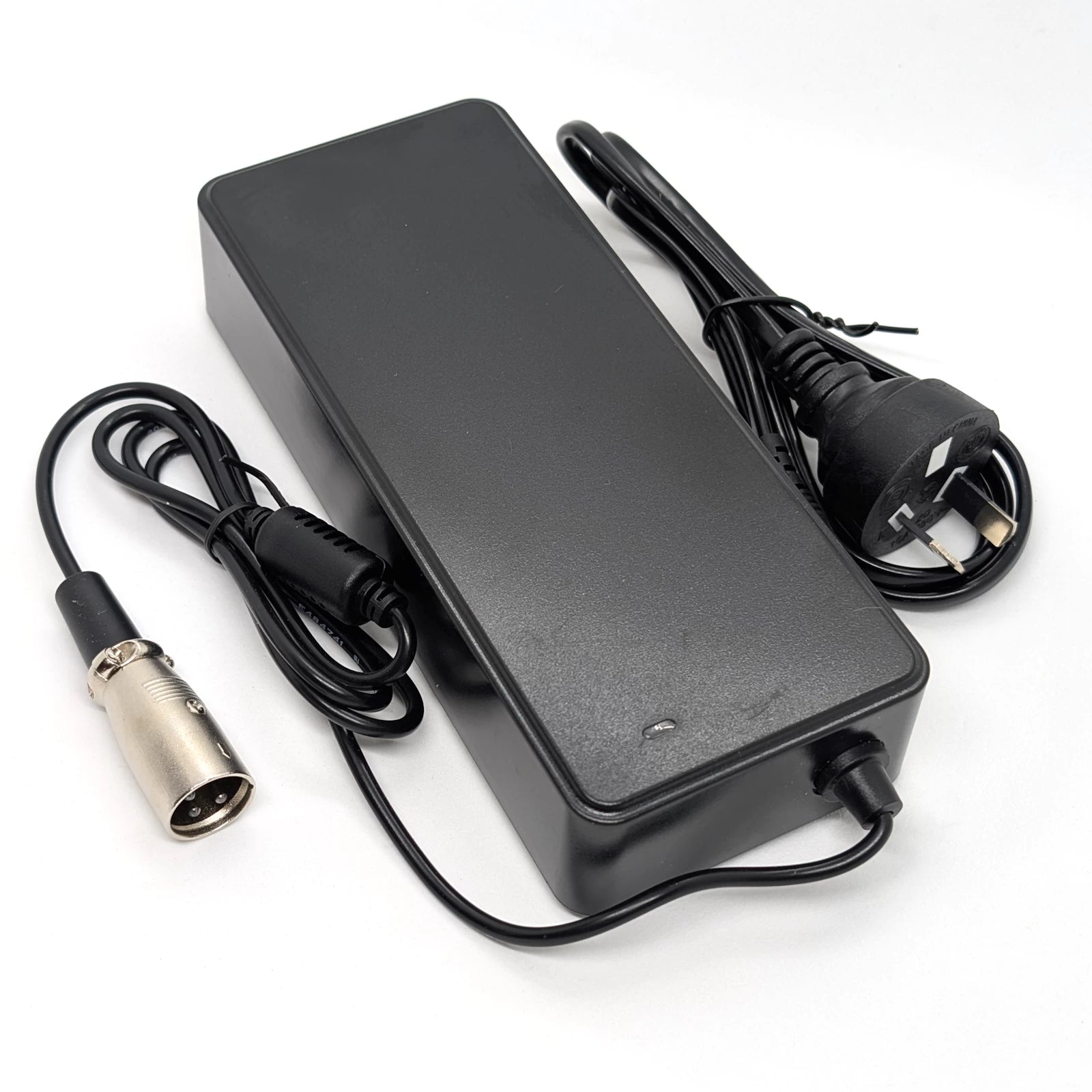

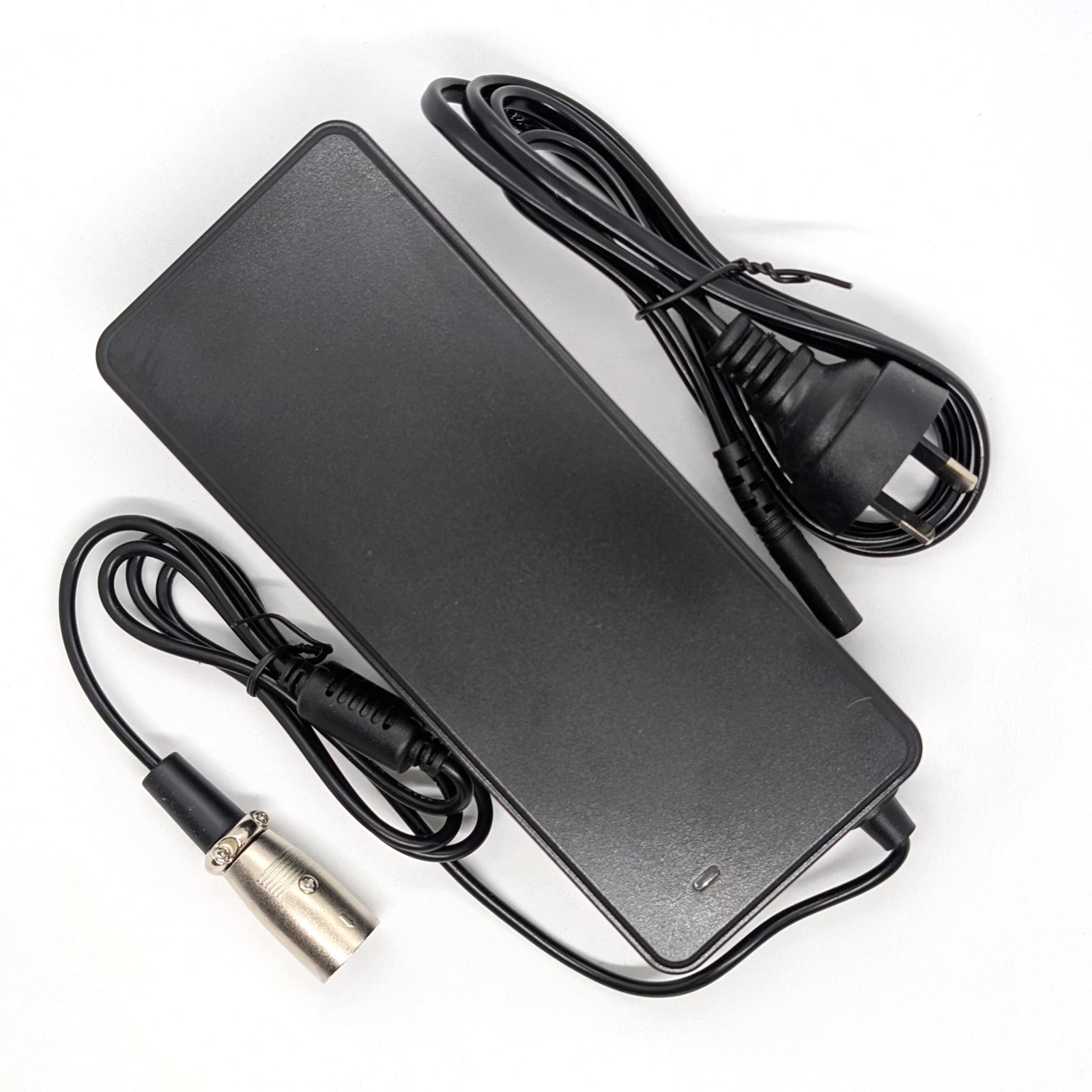

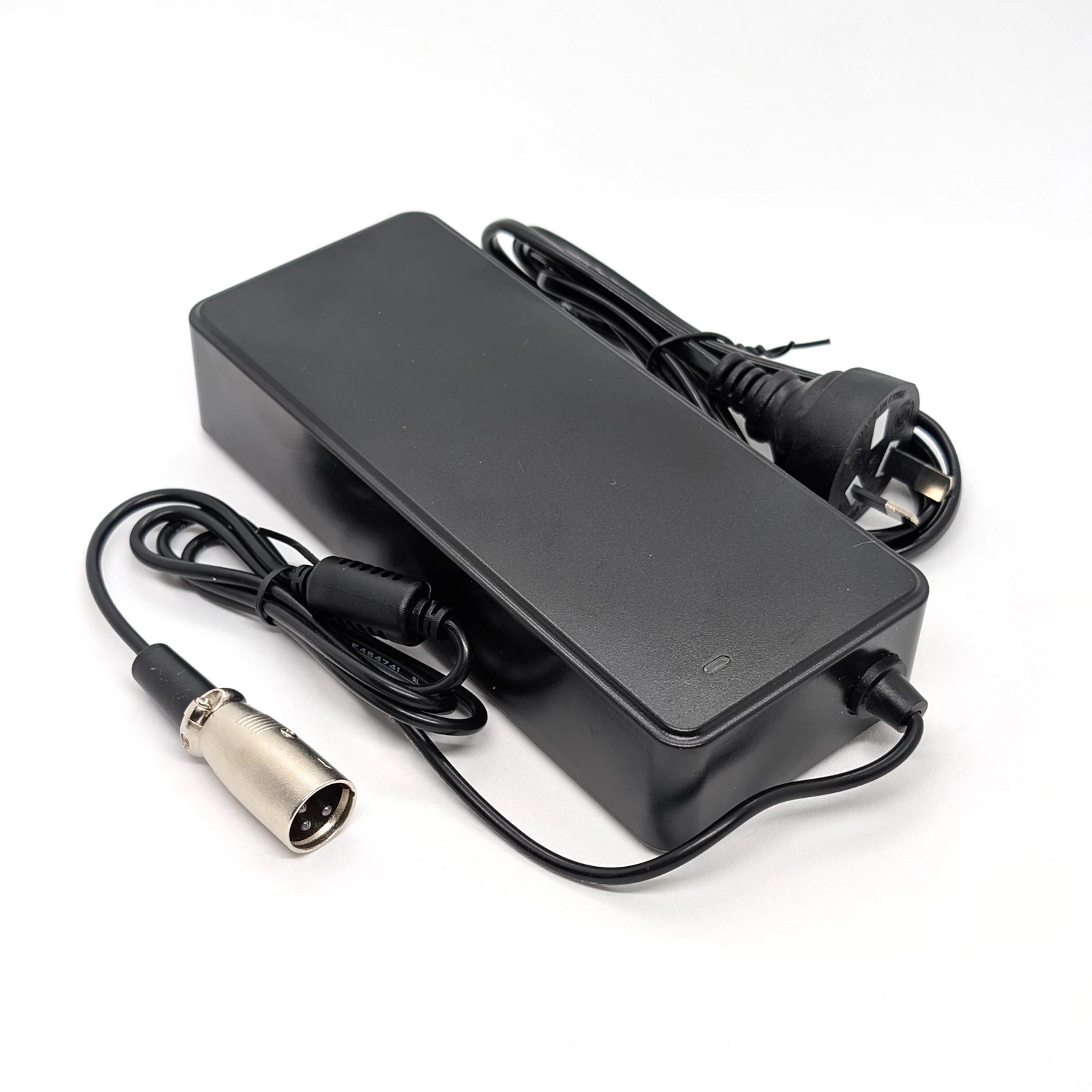

67.2V 2A Charger – 3-Pin XLR Plug | 60V Electric Scooters | Australian Plug
Replacement 67.2V 2A electric scooter charger for compatible 60V lithium-ion electric scooters using a standard 3-pin XLR charging connector.
The charger features a wide-range 100–240V AC input, 67.2V DC / 2A output, detachable Australian mains power lead and LED charging indicator. The metal 3-pin XLR connector provides a secure connection and is commonly used across a range of 60V electric scooters.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Gojusin |
| Product | AC/DC Electric Scooter Charger |
| Model | GJS150-6720175 |
| Battery System | 60V nominal lithium-ion |
| Output Voltage | 67.2V DC |
| Output Current | 2.0A |
| Input Voltage | 100–240V AC |
| Input Frequency | 50/60Hz |
| Maximum Input Current | 2.5A |
| Charging Connector | 3-pin XLR male plug |
| AC Input Connection | IEC C8 / figure-8 |
| Mains Lead | Australian power lead included |
| Indicator | LED charging status indicator |
| Use | Indoor use only |
| Manufacturer | Shenzhen Gojusin Technology Co., Ltd |
| Country of Manufacture | China |
| Certifications / Marks | CE, FCC, RCM, RoHS, UKCA, GS |
| Date Code shown | 2024-02-01 |
Compatibility
Suitable for 60V lithium-ion electric scooters requiring a 67.2V charging voltage, 2A charging current and matching 3-pin XLR charging socket/polarity.
This style of connector is used by numerous electric scooter brands and models, but XLR connectors are not universally wired the same way.
Before ordering: compare your original charger specification and charging plug with the photos. The replacement charger must match:
67.2V output + 3-pin XLR connector + correct pin polarity.
Do not purchase based only on your scooter having a "60V" battery.
3-Pin XLR Connector
This charger has a full-size metal 3-pin male XLR charging plug, rather than the smaller GX aviation or Baming-style connectors found on some scooters.

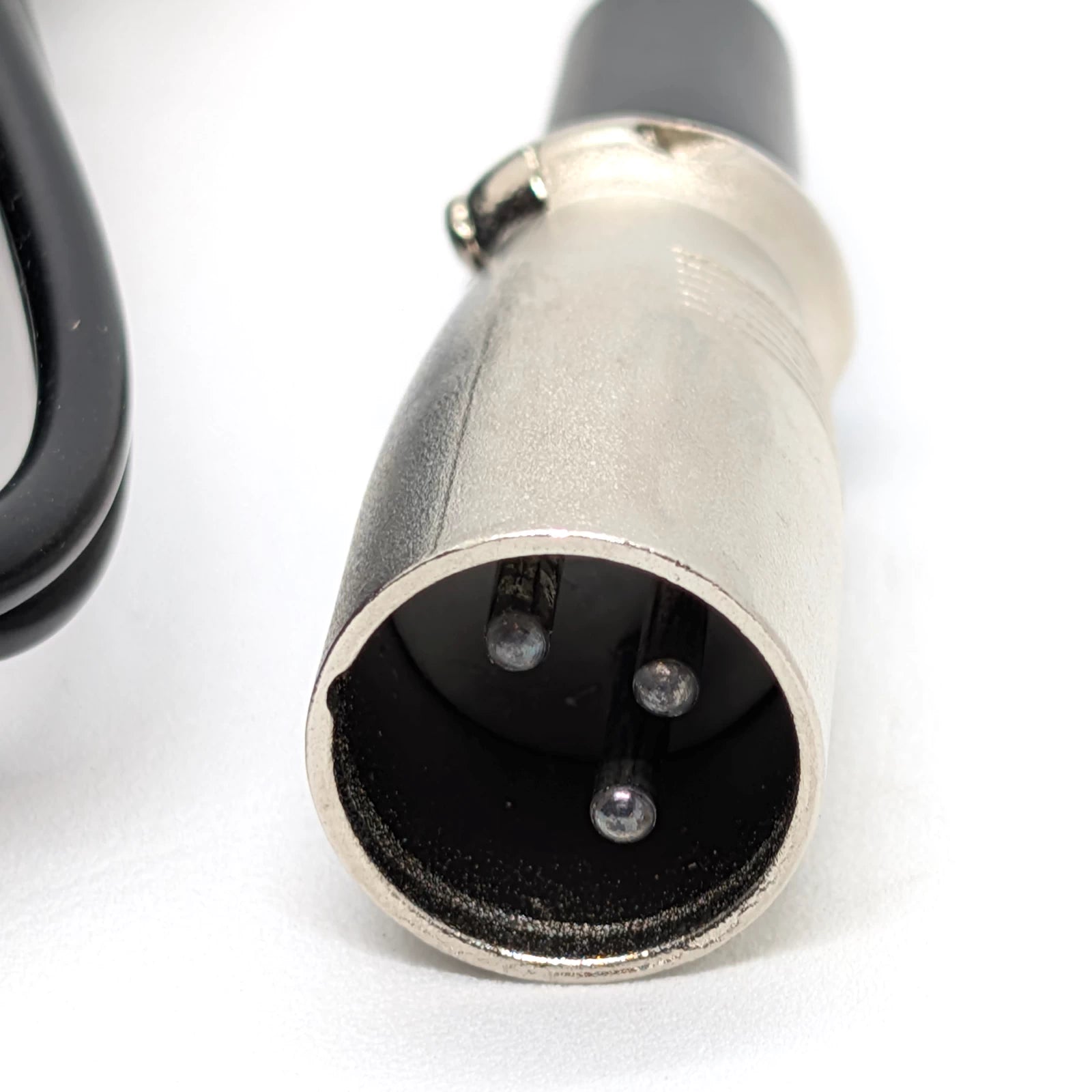

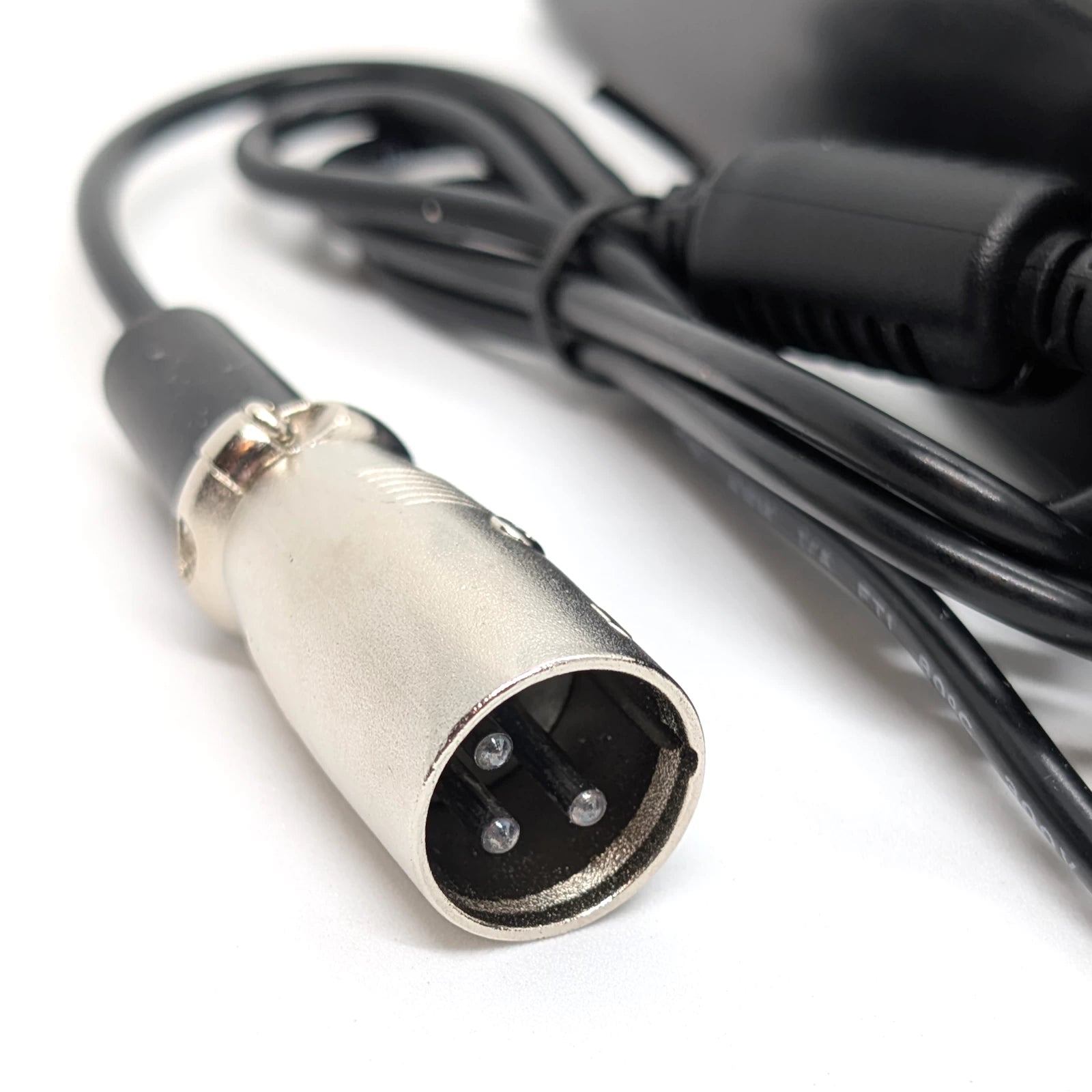

The close-up product images show the three-pin arrangement to help customers confirm compatibility before ordering.

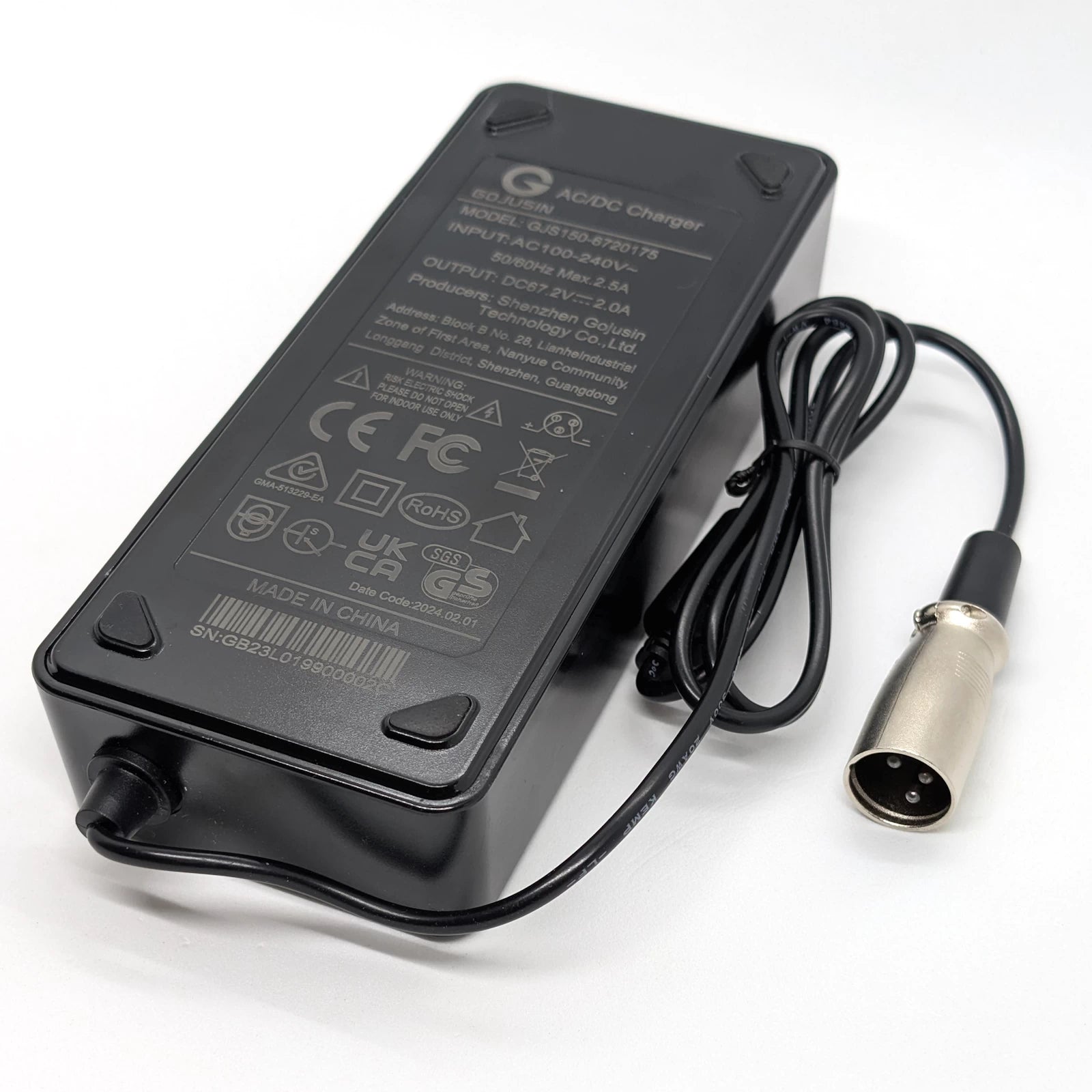

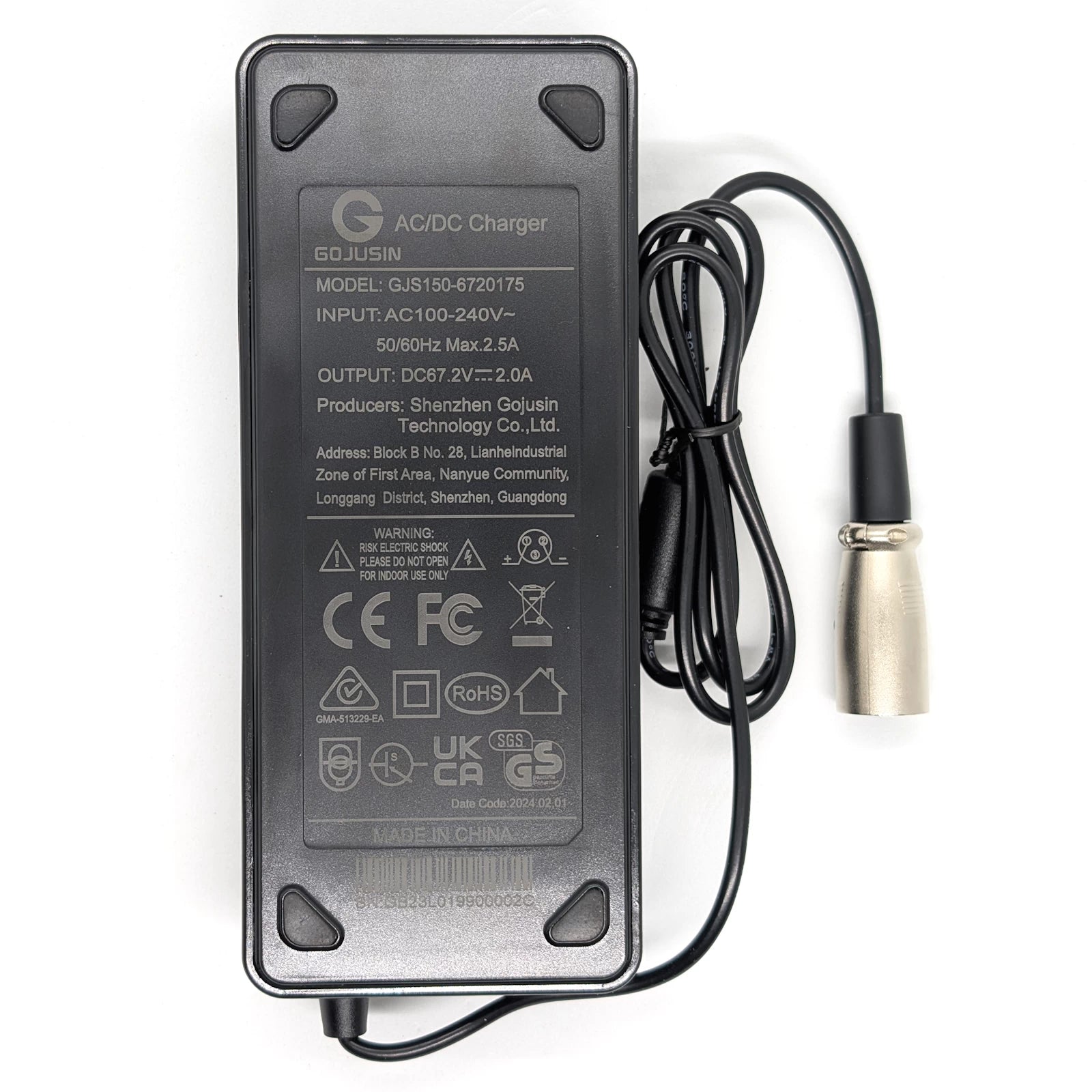

Based on the polarity diagram printed on this charger, the active charging connections are shown as Pin 1 positive (+) and Pin 2 negative (–). Customers should confirm the polarity of their scooter before use.
Australian Power Lead
Supplied ready for Australian use with a detachable AU mains lead.

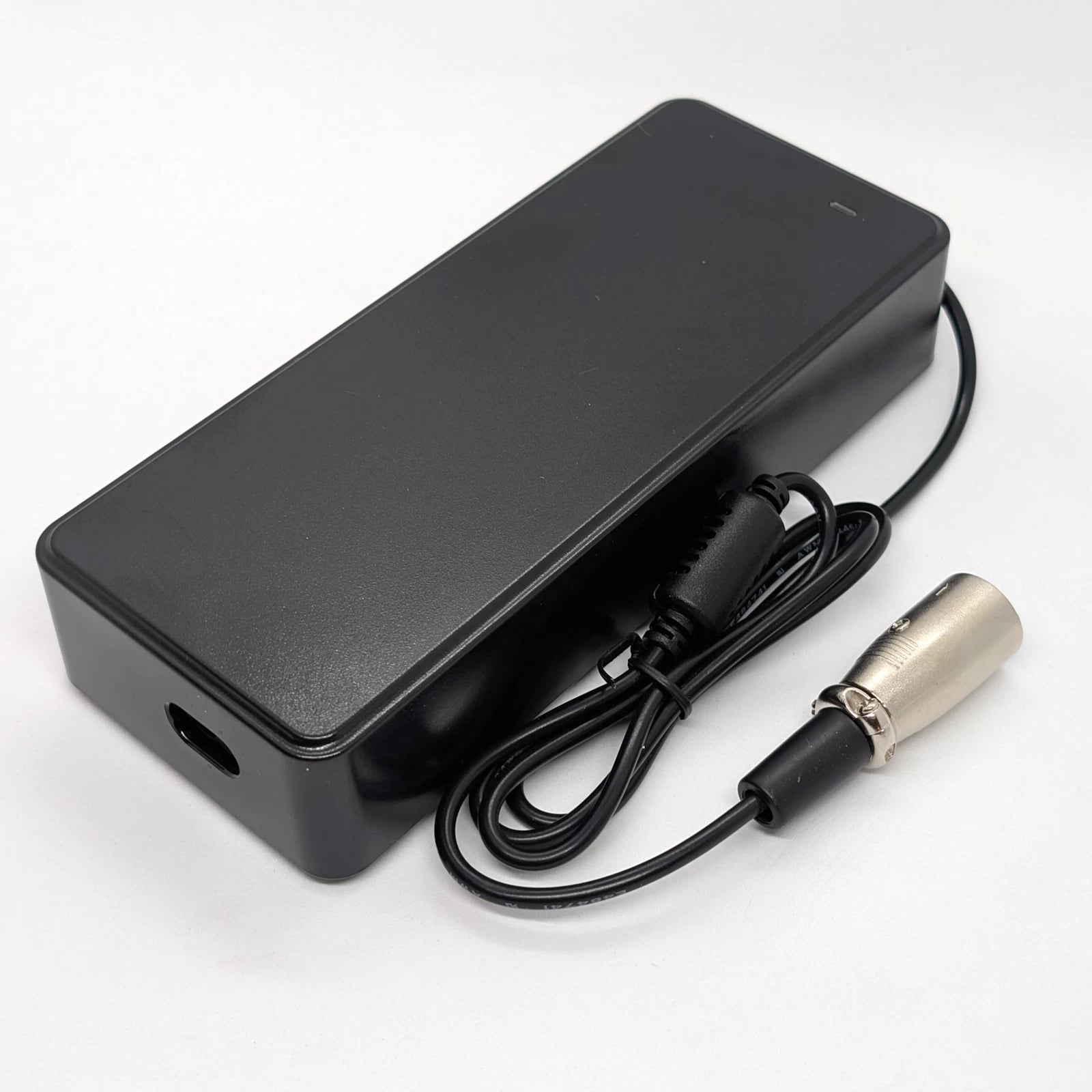

The charger body uses a standard IEC C8 "figure-8" AC inlet, allowing the mains cable to be removed or replaced separately.
Charging a 60V Lithium Battery
A typical lithium-ion battery sold as 60V nominal uses a higher voltage when fully charged. This charger provides a regulated 67.2V DC output, intended for compatible 60V battery systems requiring a 67.2V full-charge voltage.
The 2A output provides standard charging rather than high-current fast charging, provided 2A is within the charging specification of the scooter and battery.
Regulatory Compliance Mark (RCM)
The Regulatory Compliance Mark (RCM), a trademark of Australian regulatory authorities, ensures this charger meets Australian electrical safety standards. Never compromise safety—only use chargers with the RCM tick mark to protect yourself and your scooter.
