84V 5A Fast Charger for Inmotion RS (72V) Electric Scooter - AU Plug | RCM Certified

Charge your electric scooter quickly and safely with the 4A Fast Charger (3 Pin GX-16),

High-power 84V 5A fast charger for the InMotion RS electric scooter, designed for its 72V battery system. With a 420W output, this charger provides substantially faster charging than lower-amperage replacement chargers while maintaining the correct 84V charging voltage required by a 72V lithium-ion battery.

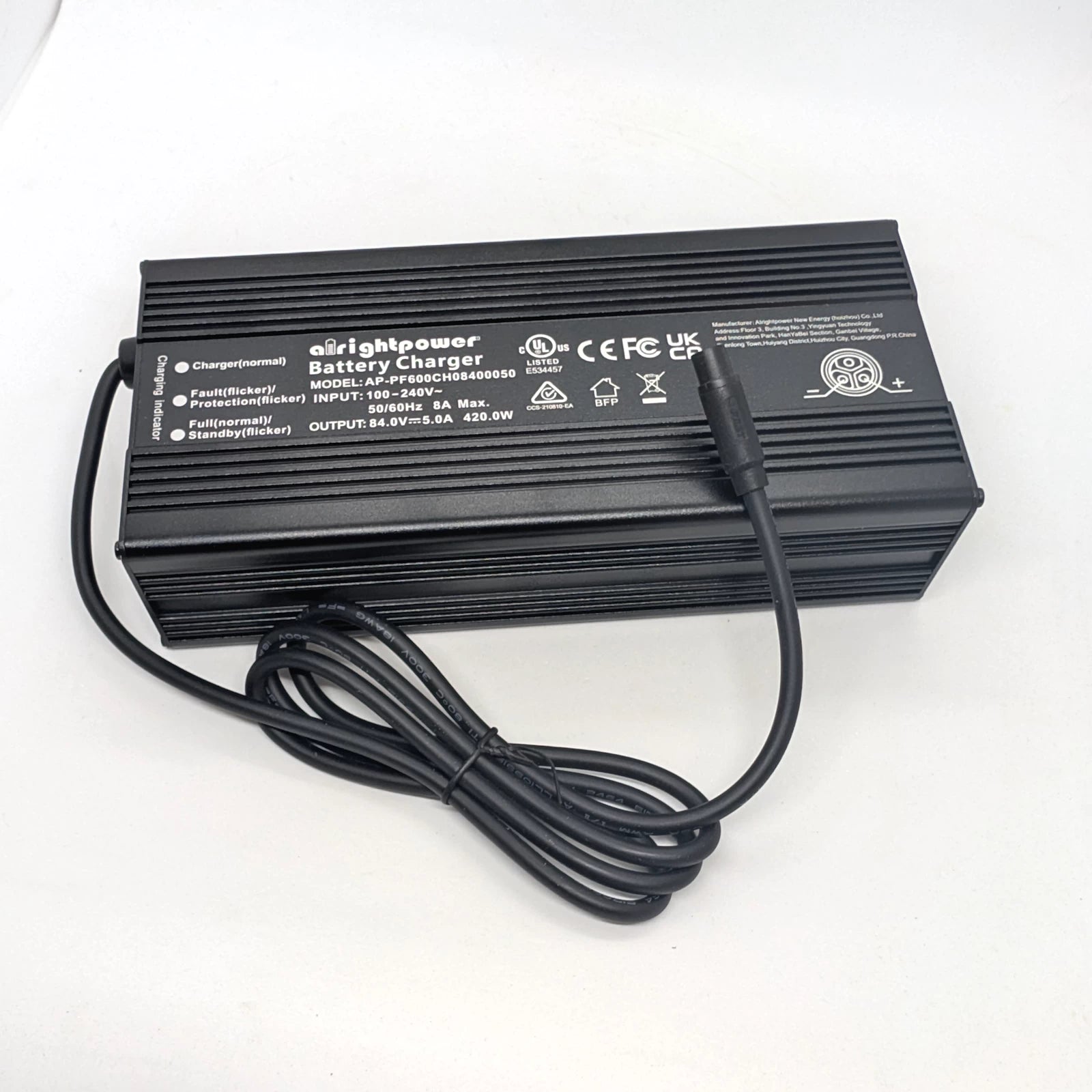

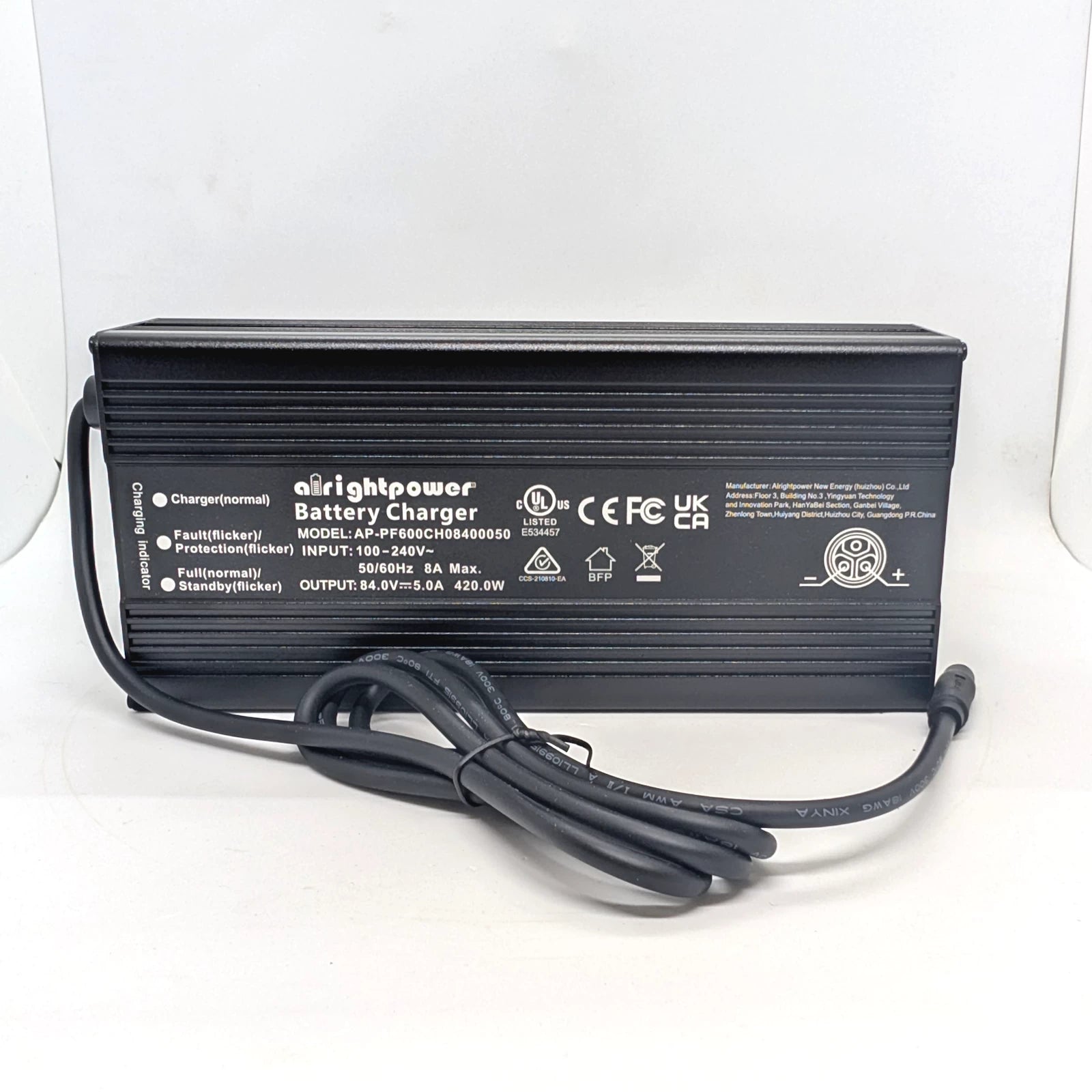

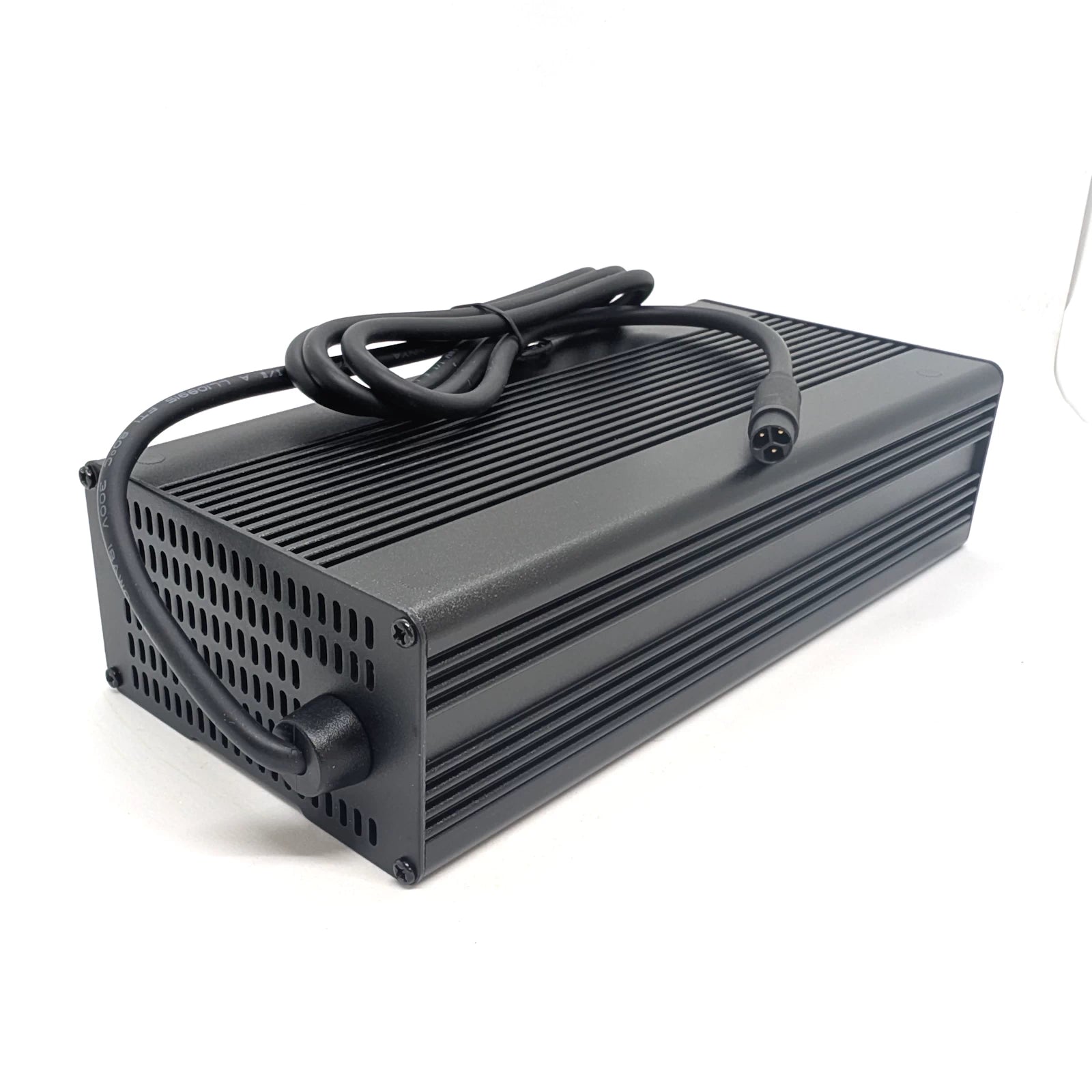

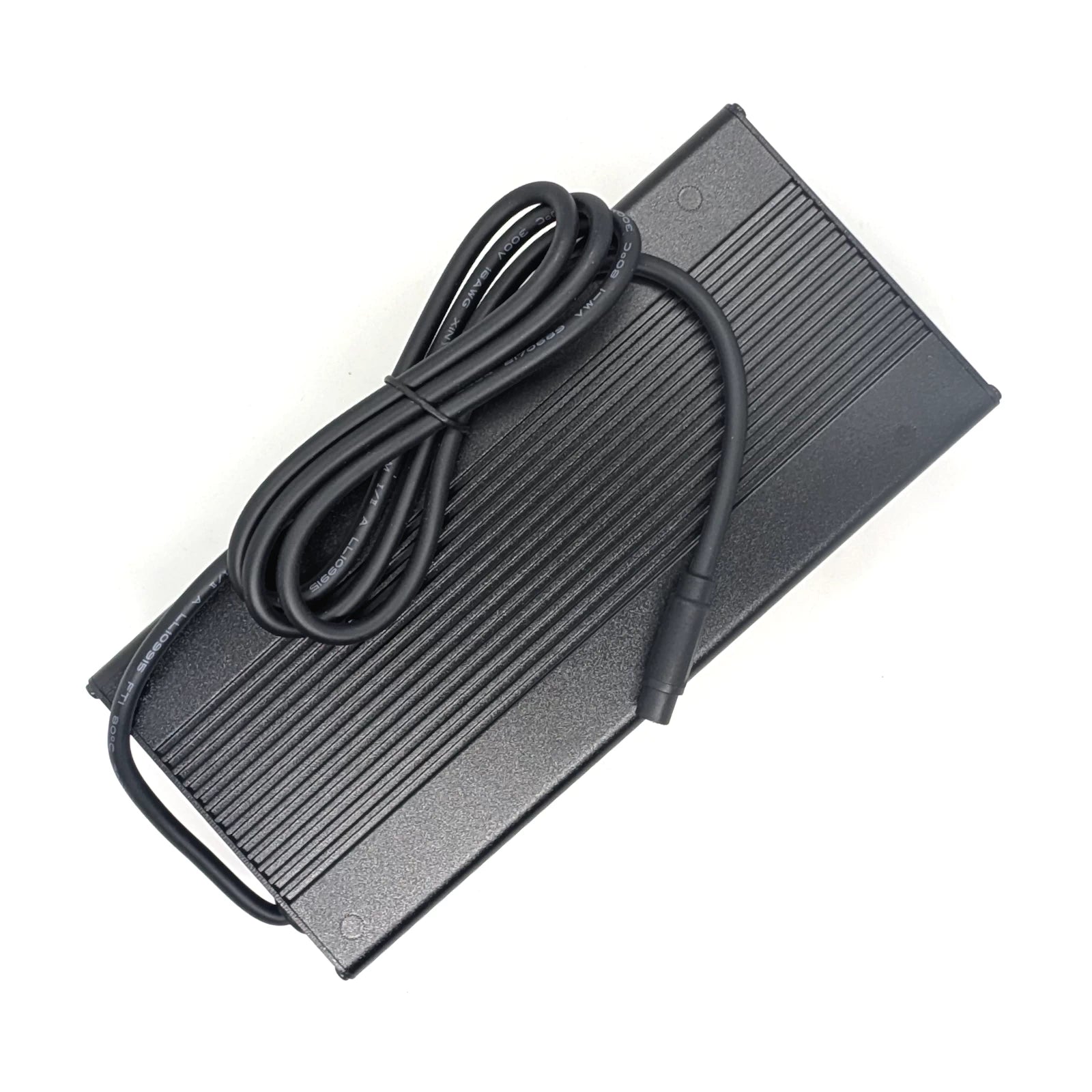

Manufactured by Alrightpower New Energy, the charger features a robust finned metal housing with active cooling fan and a dedicated 3-pin charging connector for the InMotion RS.

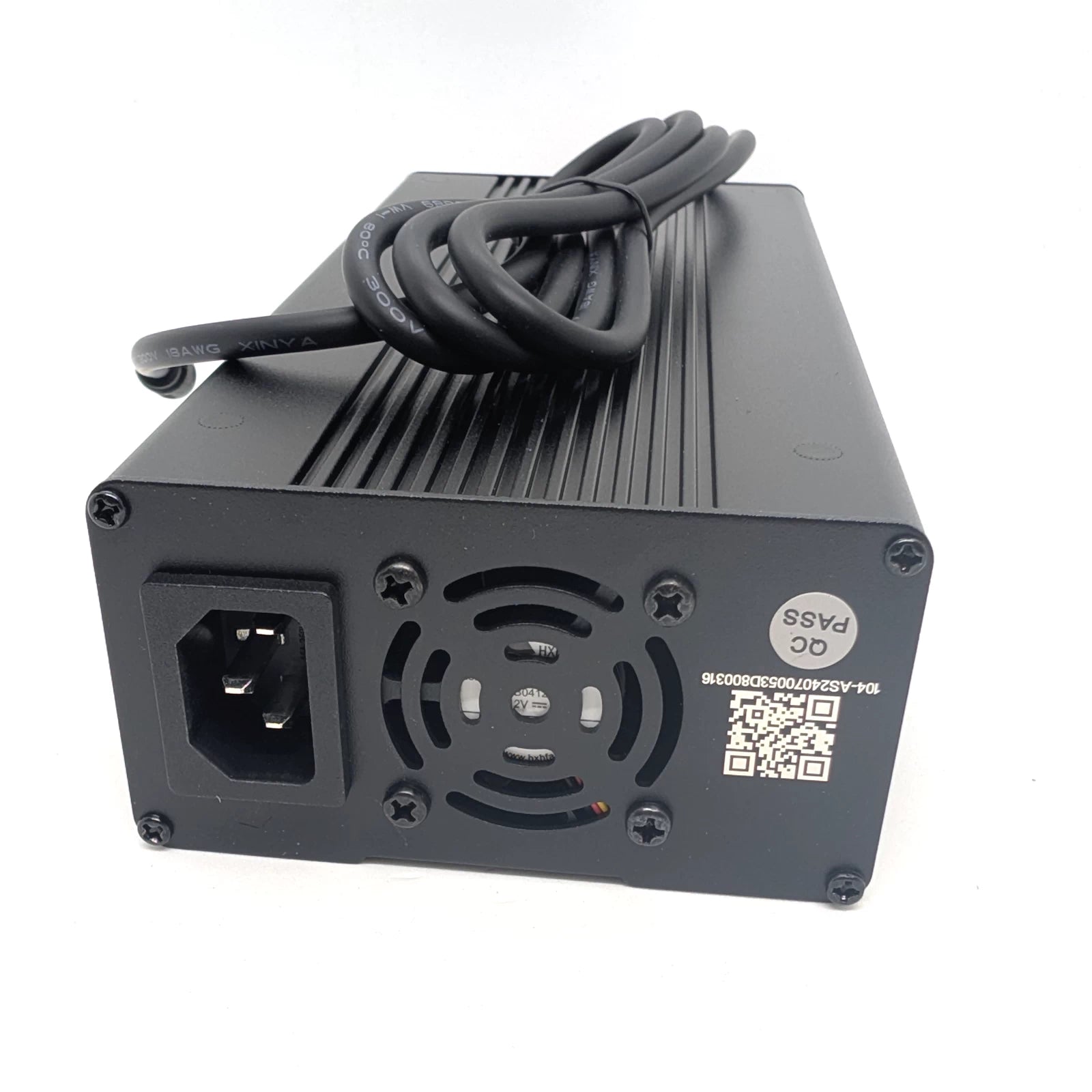

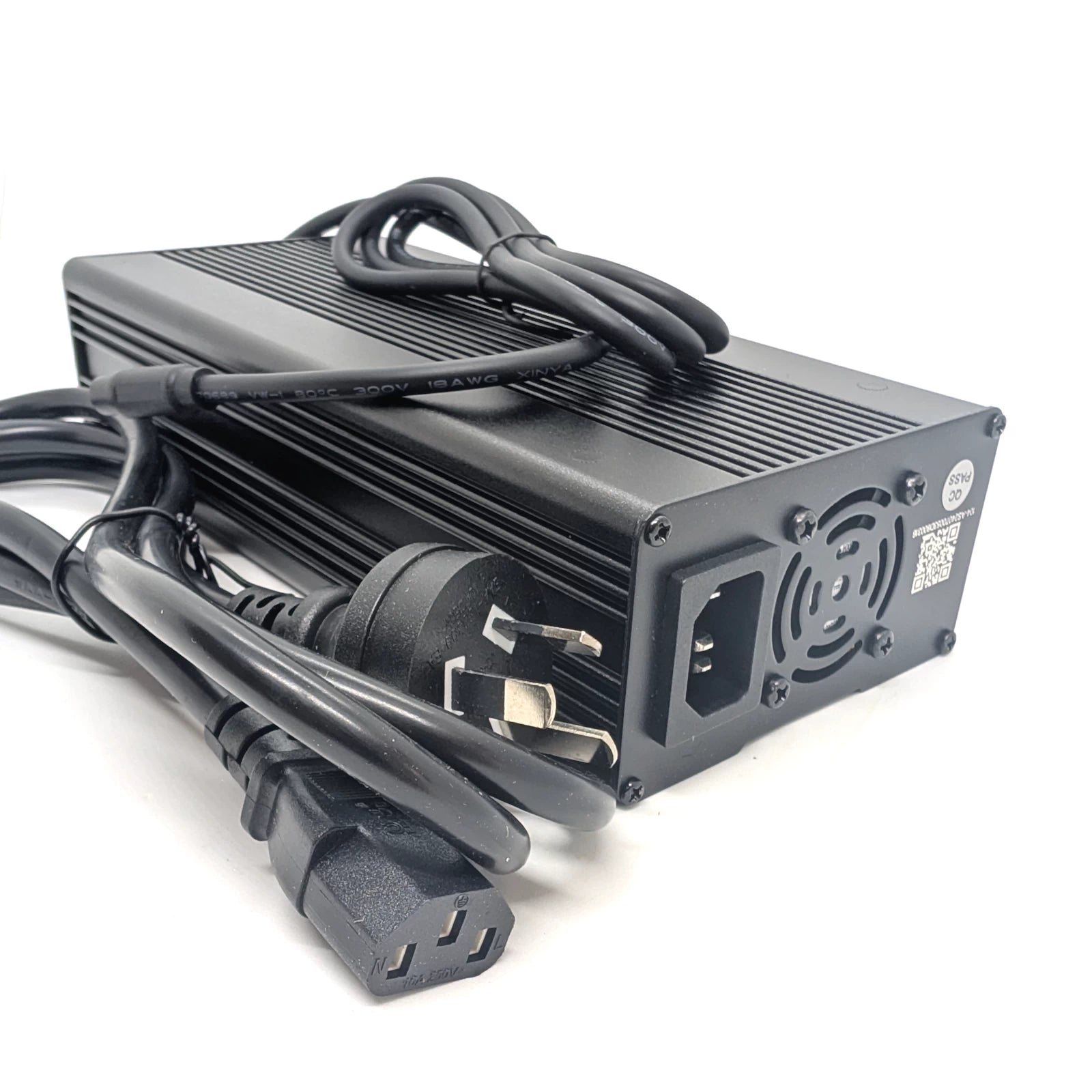

For the Australian market, this charger is RCM certified and supplied with an Australian power lead. Unlike chargers with a permanently attached mains cable, it uses a standard IEC 320 C14 AC power inlet, allowing the mains lead to be replaced independently if damaged.

The charger also carries UL, CE, FCC and UKCA compliance markings.

Specifications

• Manufacturer: Alrightpower New Energy (Huizhou) Co., Ltd

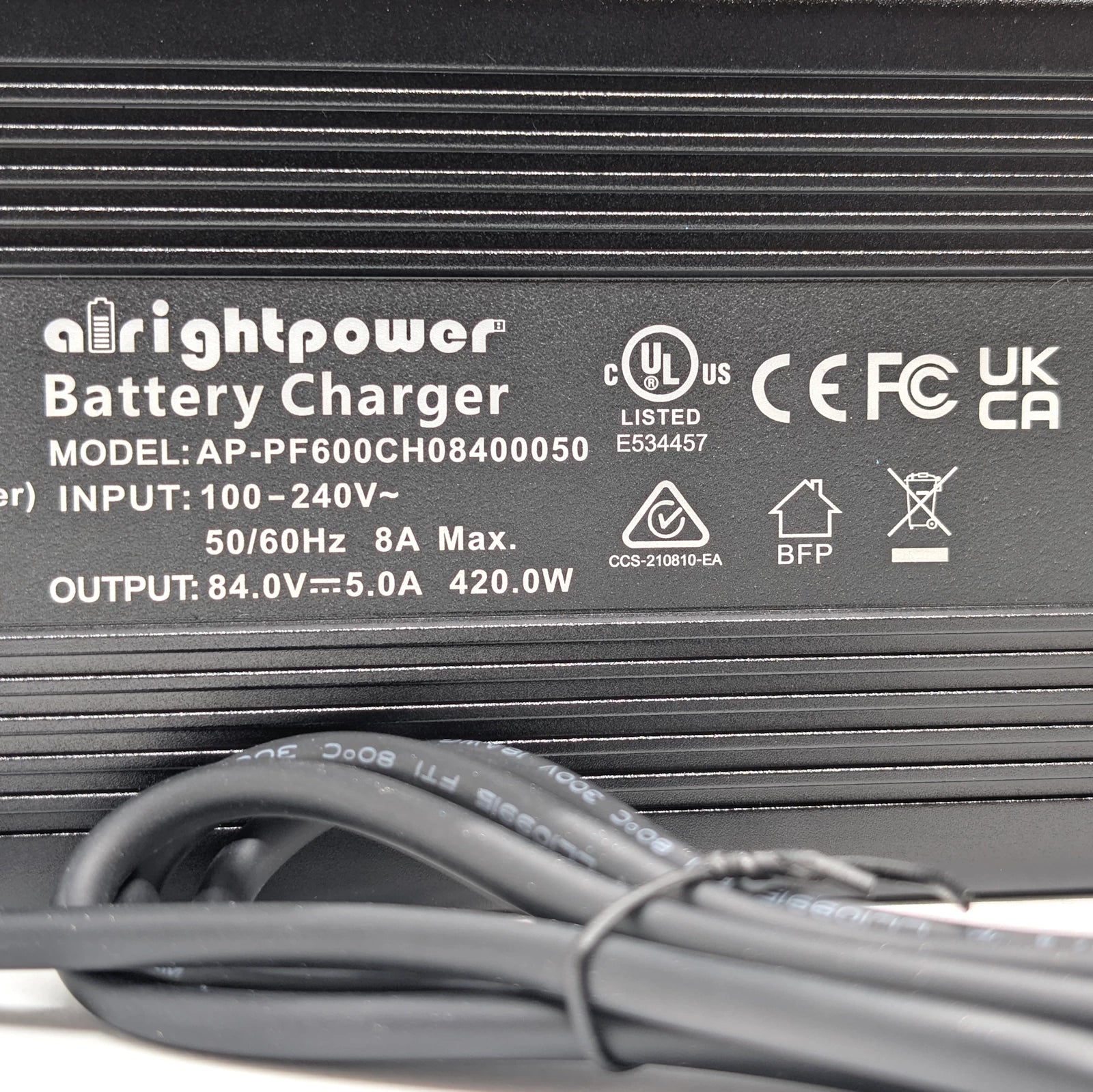

• Model: AP-PF600CH08400050
• Battery system: 72V lithium-ion
• Output voltage: 84.0V DC
• Output current: 5.0A
• Output power: 420W
• AC input: 100–240V AC
• Frequency: 50/60Hz
• Maximum input: 8A

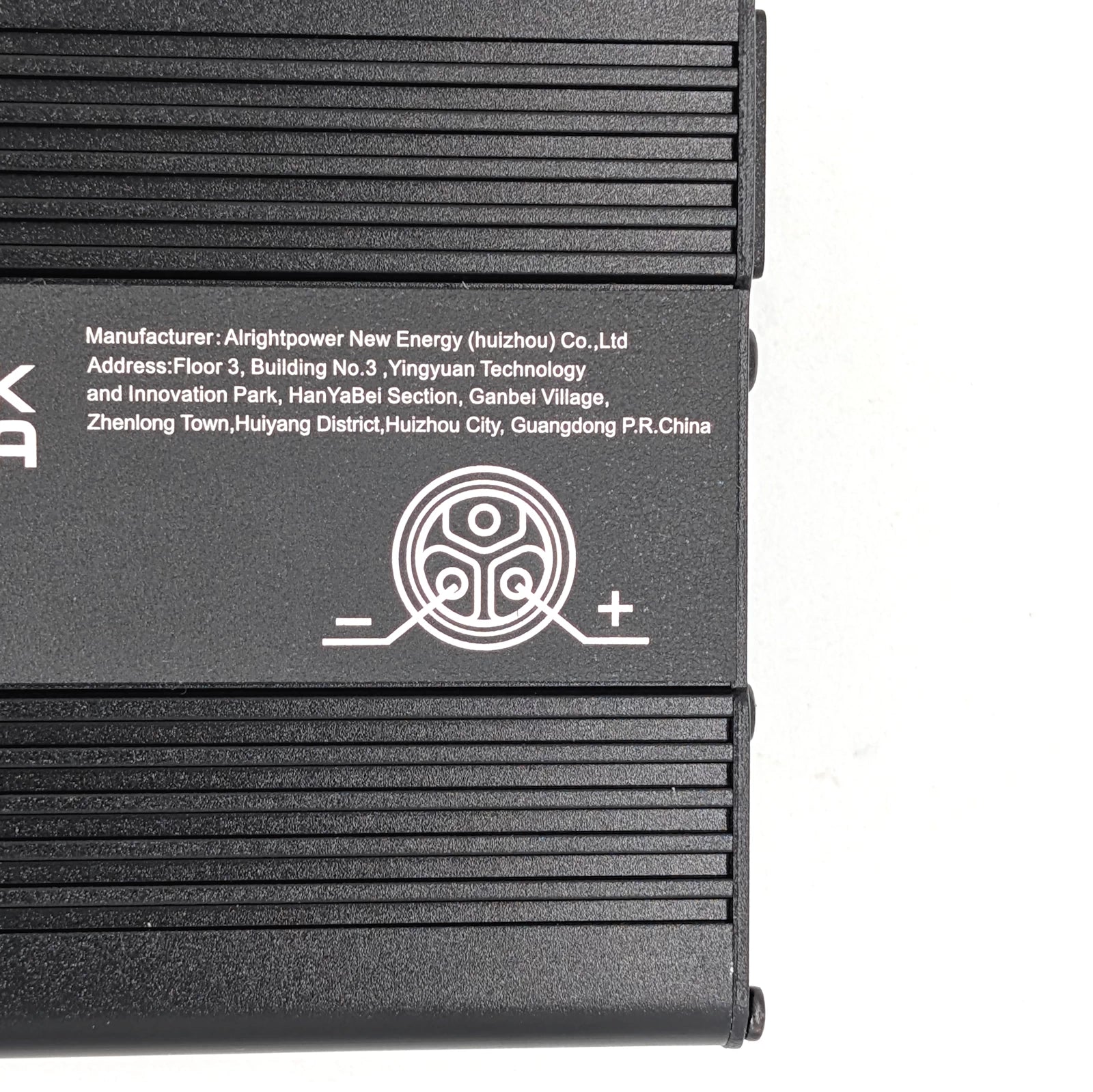

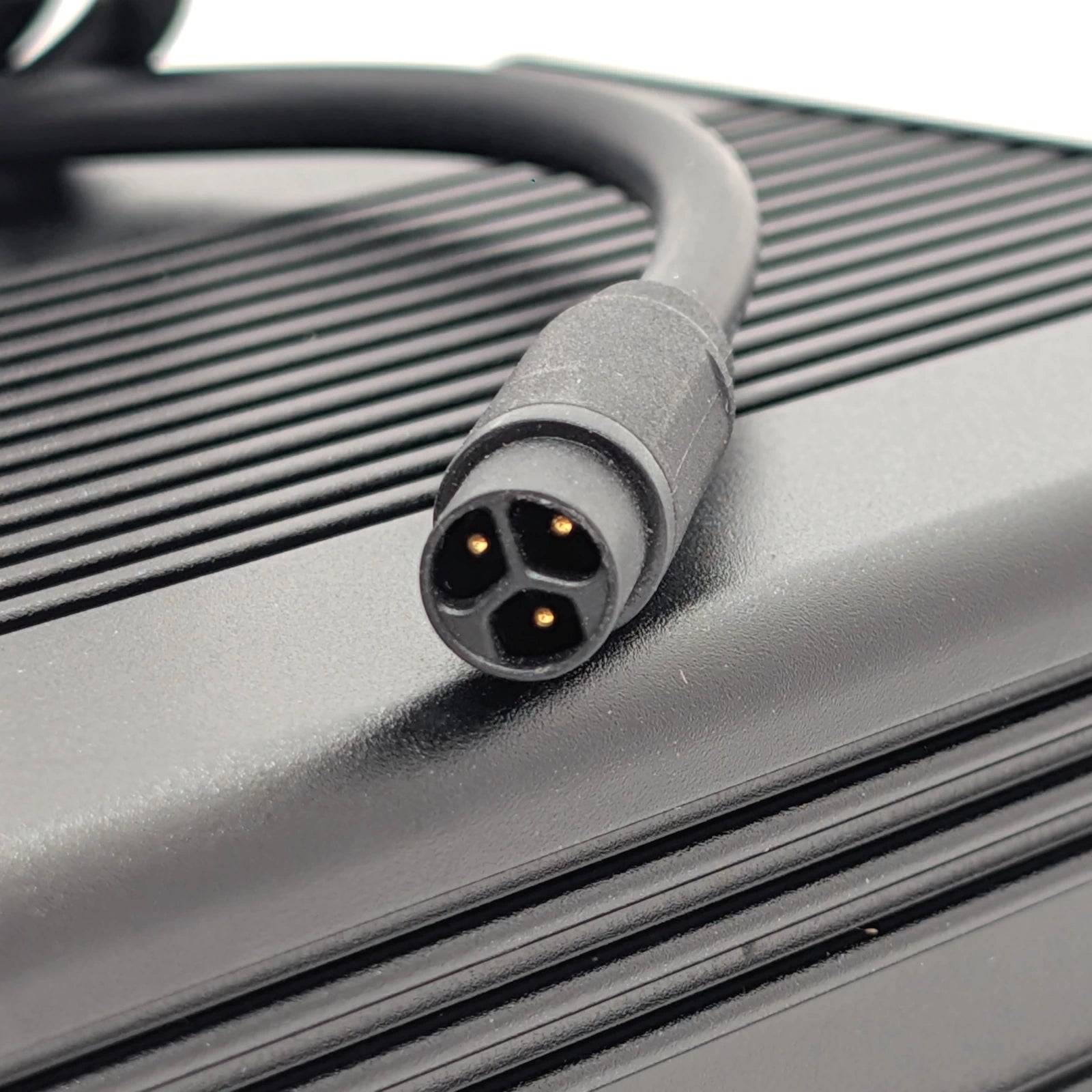

• Scooter connector: 3-pin round charging plug
• AC input connection: IEC 320 C14

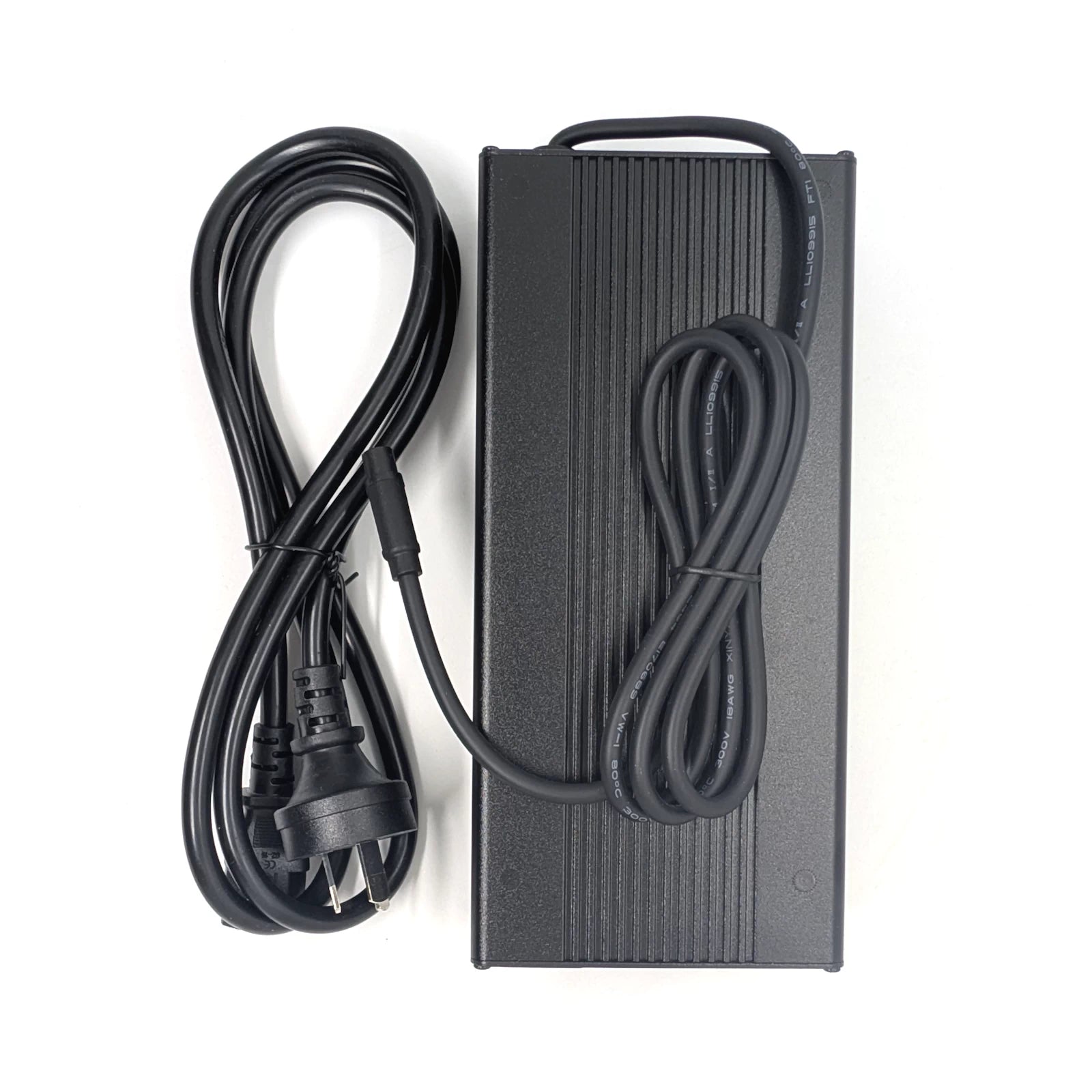

• Australian mains lead: Included
• Cooling: Active fan cooling
• Housing: Finned metal enclosure

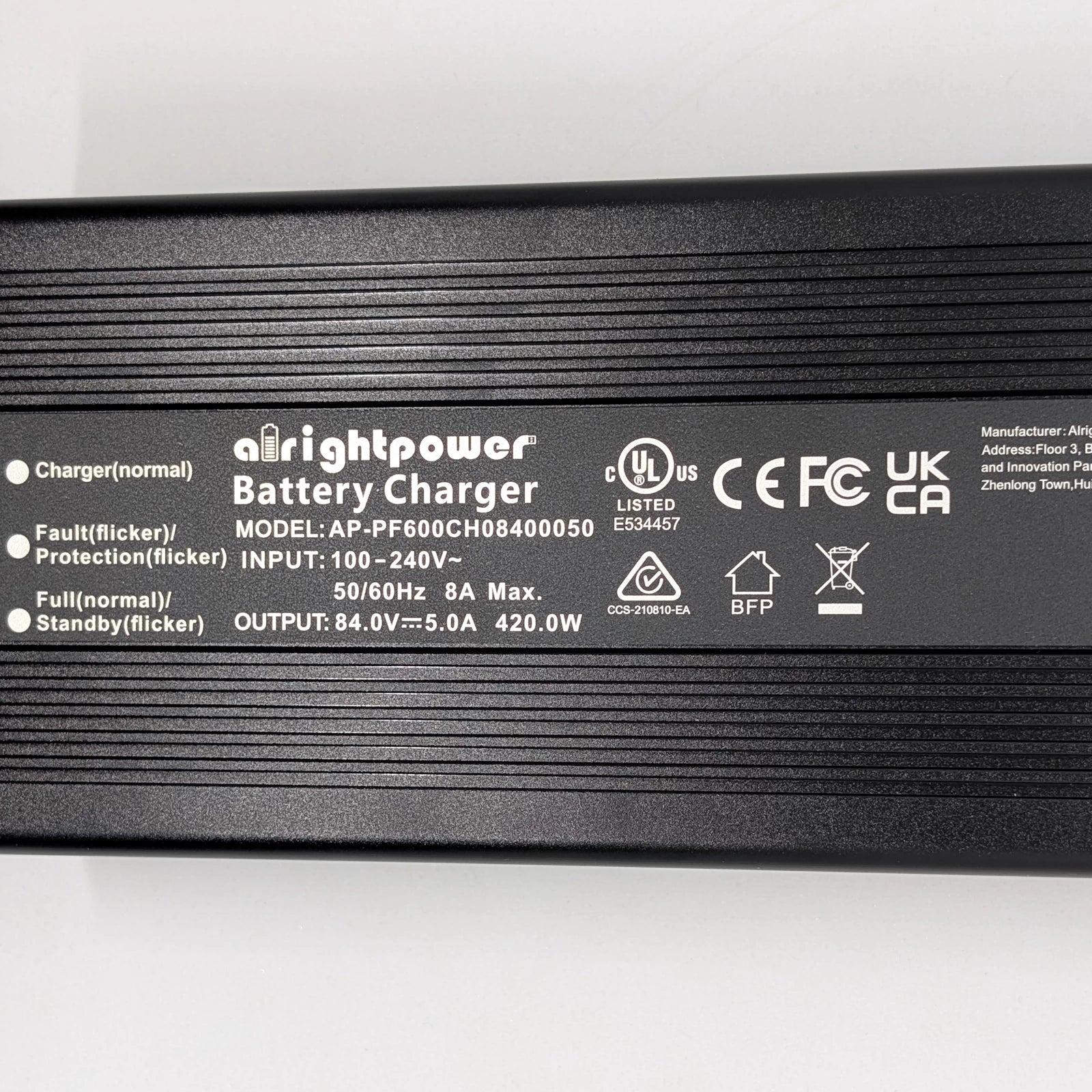

• Status indicator: Charging / Full / Fault-Protection
• Compliance: RCM, UL Listed, CE, FCC, UKCA
• Application: Indoor use

Compatibility

✅ Compatible with:

• InMotion RS
• 72V InMotion RS models requiring an 84V charger with the matching 3-pin charging connector

⚠️ Important: Charger voltage and connector configuration must match your scooter. A physically similar 3-pin connector does not necessarily mean another scooter is electrically compatible.

Why choose the 5A charger?

The 5A output makes this a useful fast-charging option for the InMotion RS's large-capacity battery. Compared with a 2A or 3A charger, the higher charging current can significantly reduce charging time.

The replaceable IEC C14 mains connection is also preferable to a hard-wired AC lead for a workshop or long-term-use charger: if the Australian power lead becomes damaged, the lead can be replaced without replacing the complete charger.

Regulatory Compliance Mark (RCM)

The Regulatory Compliance Mark (RCM), a trademark of Australian regulatory authorities, ensures this charger meets Australian electrical safety standards. Never compromise safety—only use chargers with the RCM tick mark to protect yourself and your scooter.
