Genuine Minimotors 83V 1.4A Charger – Dualtron 72V Electric Scooters | Baming 3-Pin Plug
Genuine Minimotors 83V 1.4A replacement charger for compatible 72V Dualtron electric scooters. Manufactured by Jin Xin Yu Power (Shenzhen) Supply Co., Ltd for Minimotors, this AC/DC adapter uses the round 3-pin Baming-style charging connector found on compatible Dualtron models.
Supplied with an Australian power plug, this is a genuine replacement rather than a generic aftermarket charger.
Product Details
| Specification |
Details |
| Brand |
Minimotors |
| Product |
AC/DC Electric Scooter Charger |
| Model |
XVE118-8300140 |
| Battery Voltage |
72V nominal |
| Output Voltage |
83.0V DC |
| Output Current |
1.4A |
| Output Power |
116.2W |
| Input |
100–240V AC, 50/60Hz, 2.5A Max |
| Charging Connector |
3-pin round Baming-style plug |
| Connector Polarity |
Pin 1: Positive (+); Pin 3: Negative (–) |
| Mains Plug |
Australian AU plug |
| Indicator |
LED charging status |
| Charging Indicator |
Red |
| Charged / Disconnected Indicator |
Green |
| Protection Rating |
IP20 – indoor use |
| Certifications Marked |
CE, FCC |
| Manufacturer |
Jin Xin Yu Power (Shenzhen) Supply Co., Ltd |
| Country of Manufacture |
China |
| Contents |
1 × Charger with AU mains lead |
Compatibility
Designed for compatible Minimotors Dualtron electric scooters with a 72V battery system that require an 83V charger with this 3-pin Baming-style connector and matching polarity.
Suitable as a replacement for Minimotors charger model XVE118-8300140.
Important: Dualtron has used different batteries, charging voltages and charging connectors across its model range. Before ordering, check the output voltage, connector shape and pin configuration against your original charger.
Connector Configuration

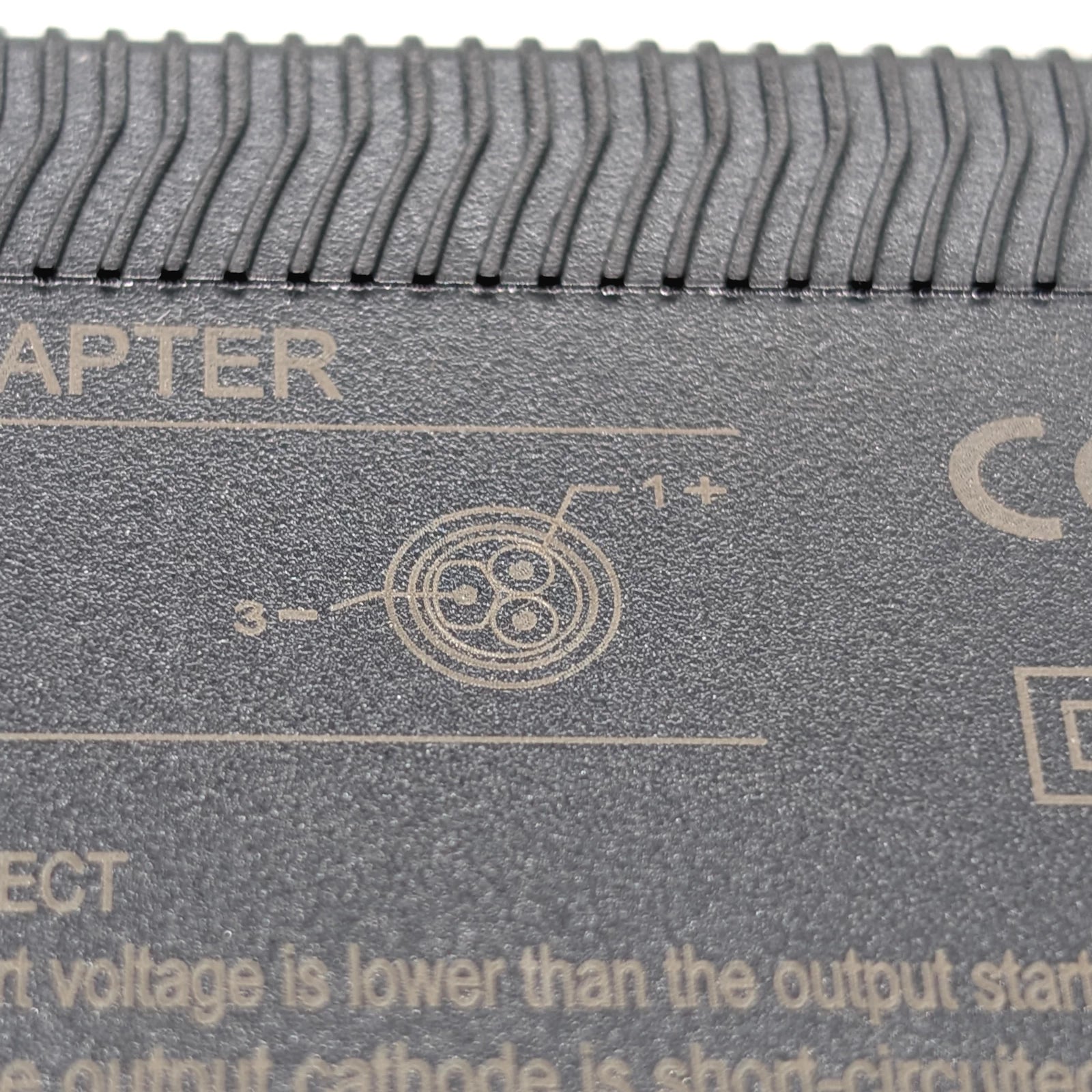

The charger uses a compact round 3-pin connector. According to the polarity diagram printed on the genuine charger:
Pin 1 = Positive (+)
Pin 3 = Negative (–)

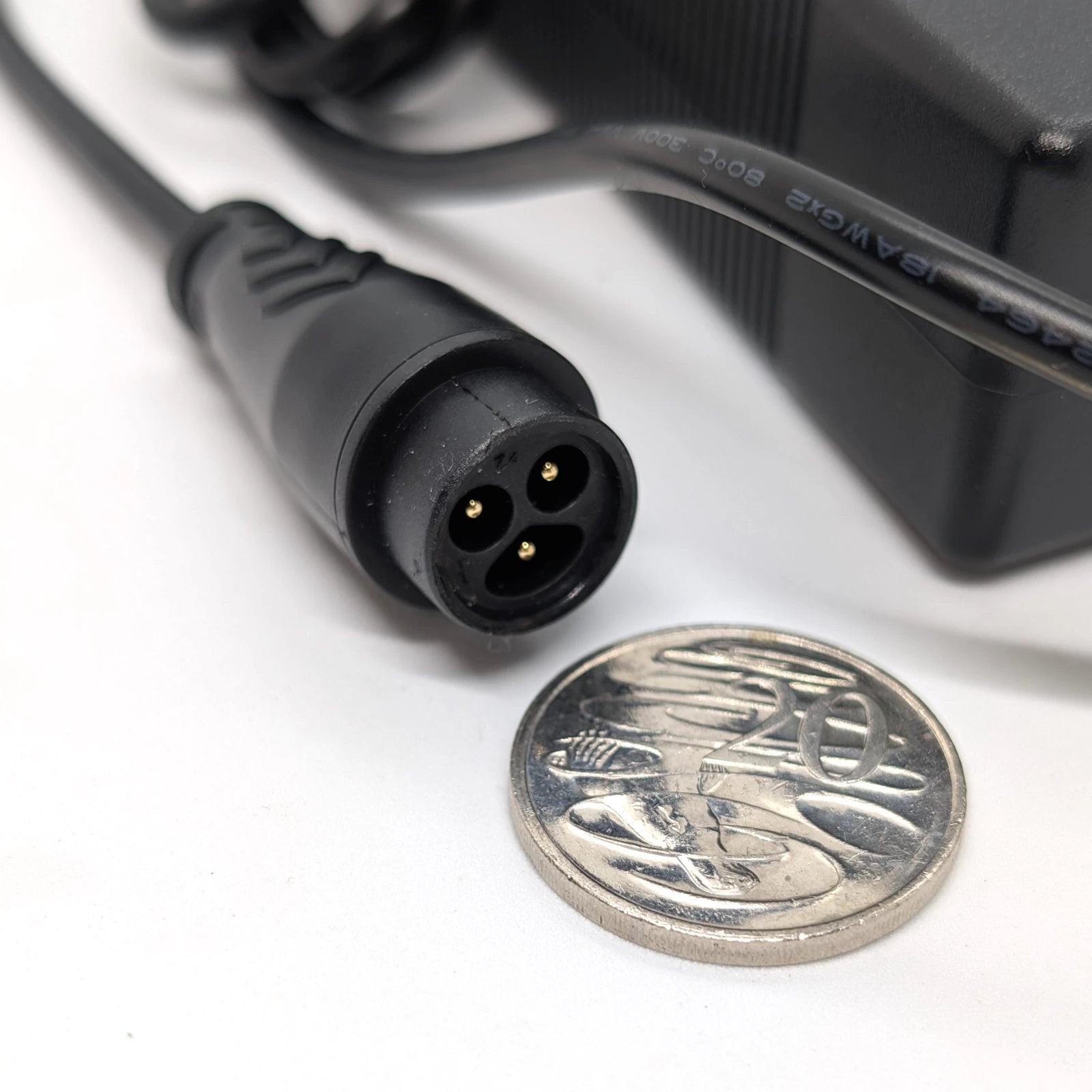

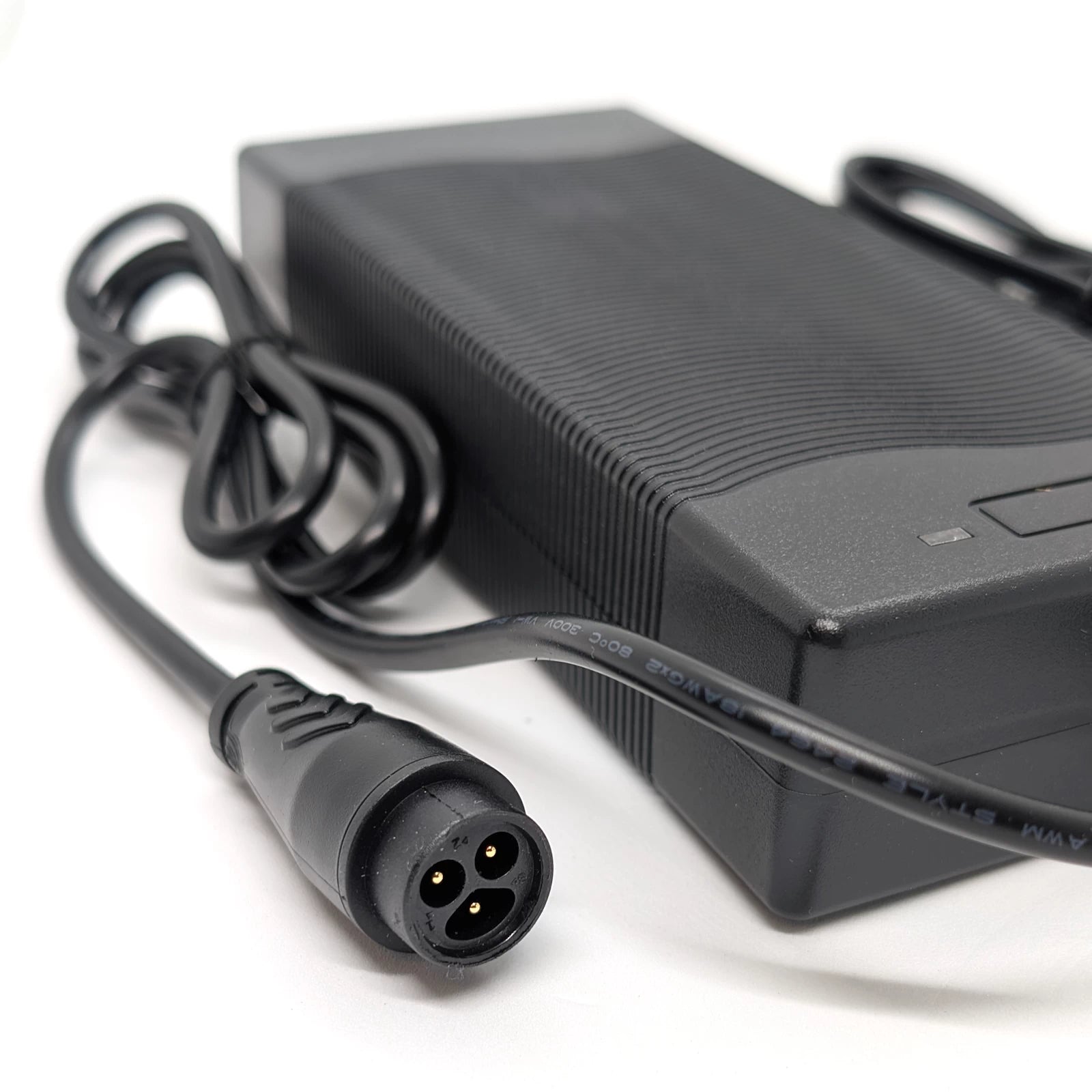

The close-up product photos are provided to make it easier to compare the connector with your existing charger before purchase.
Genuine Minimotors Replacement
Unlike generic chargers sold simply as "72V scooter chargers", this unit is Minimotors branded and carries model number XVE118-8300140.

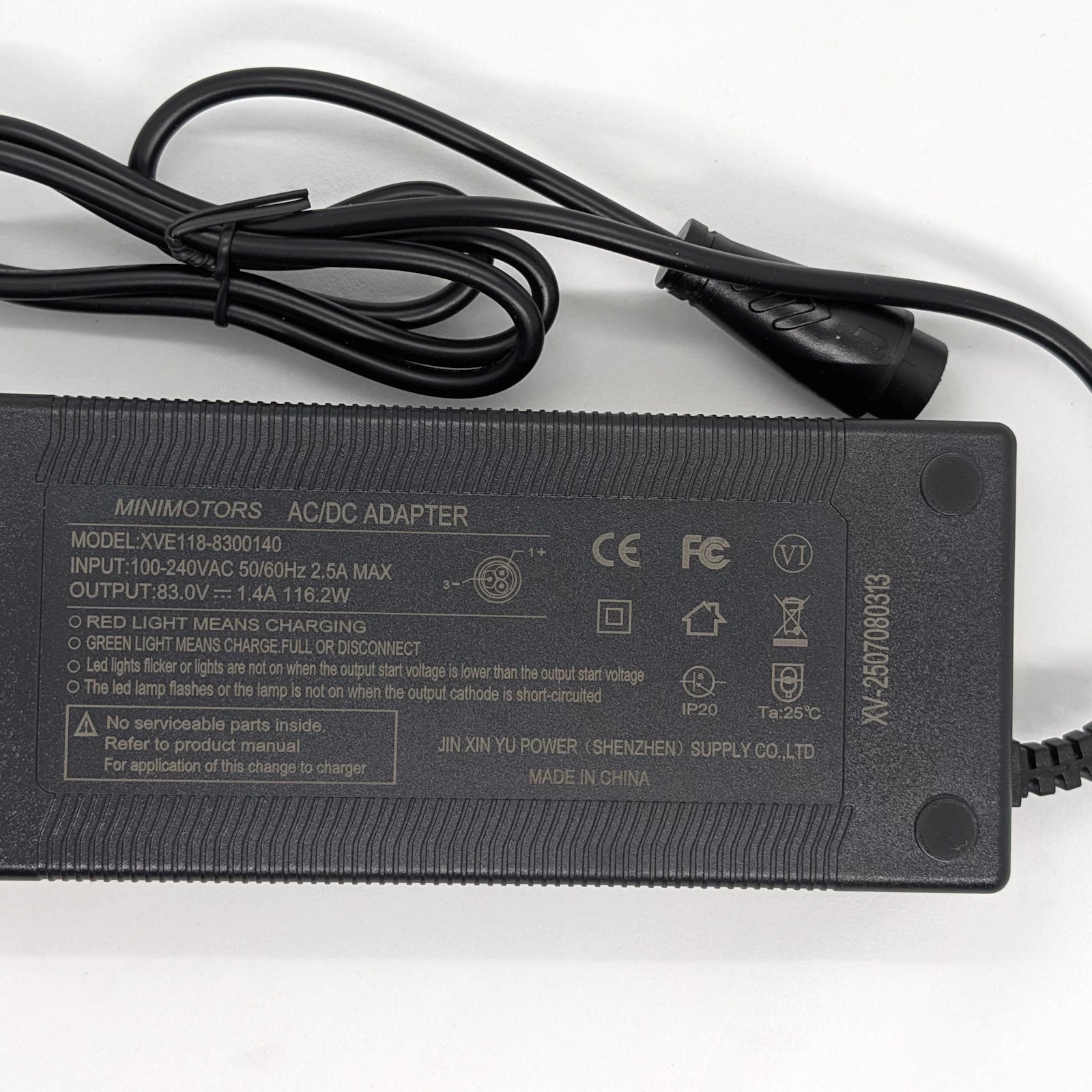

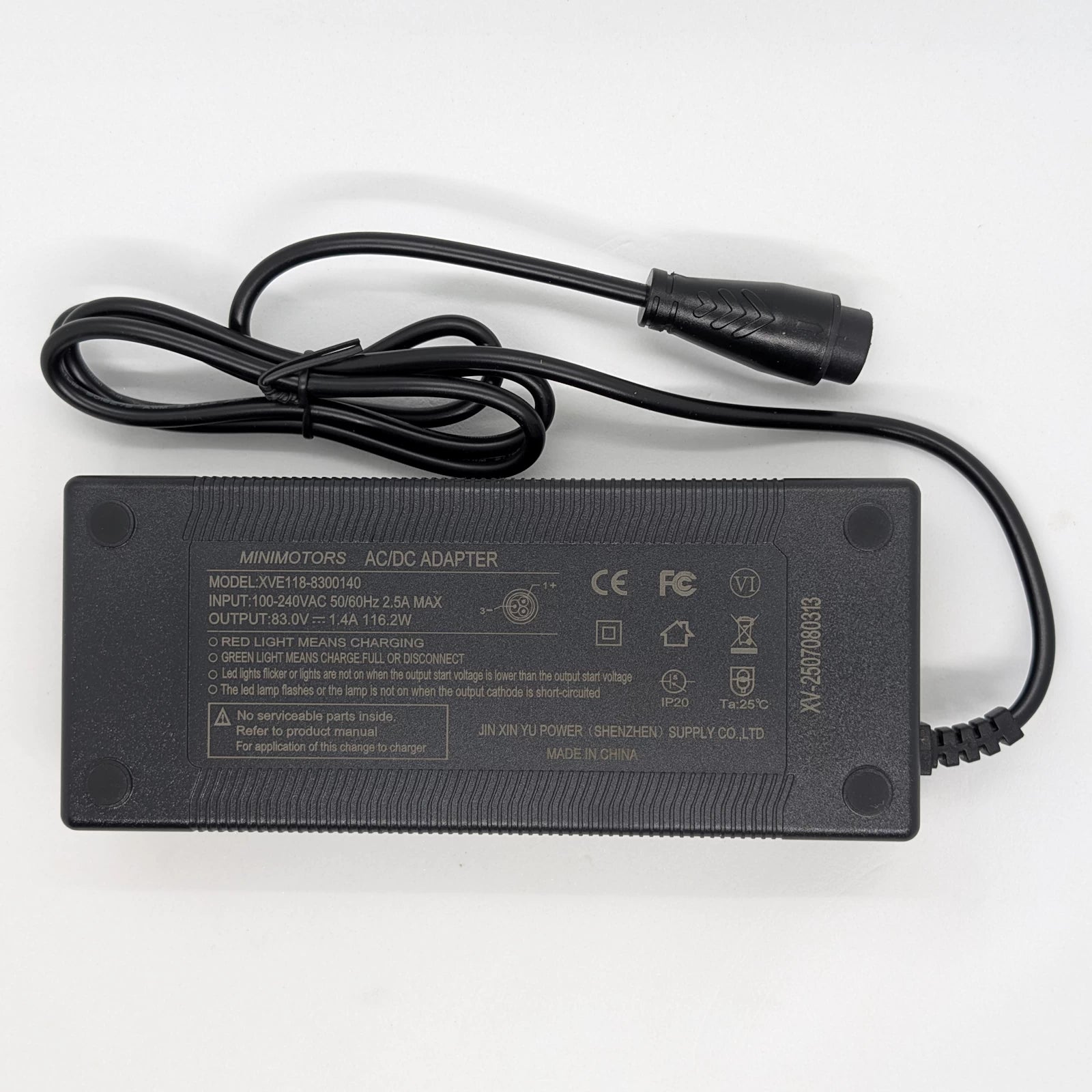

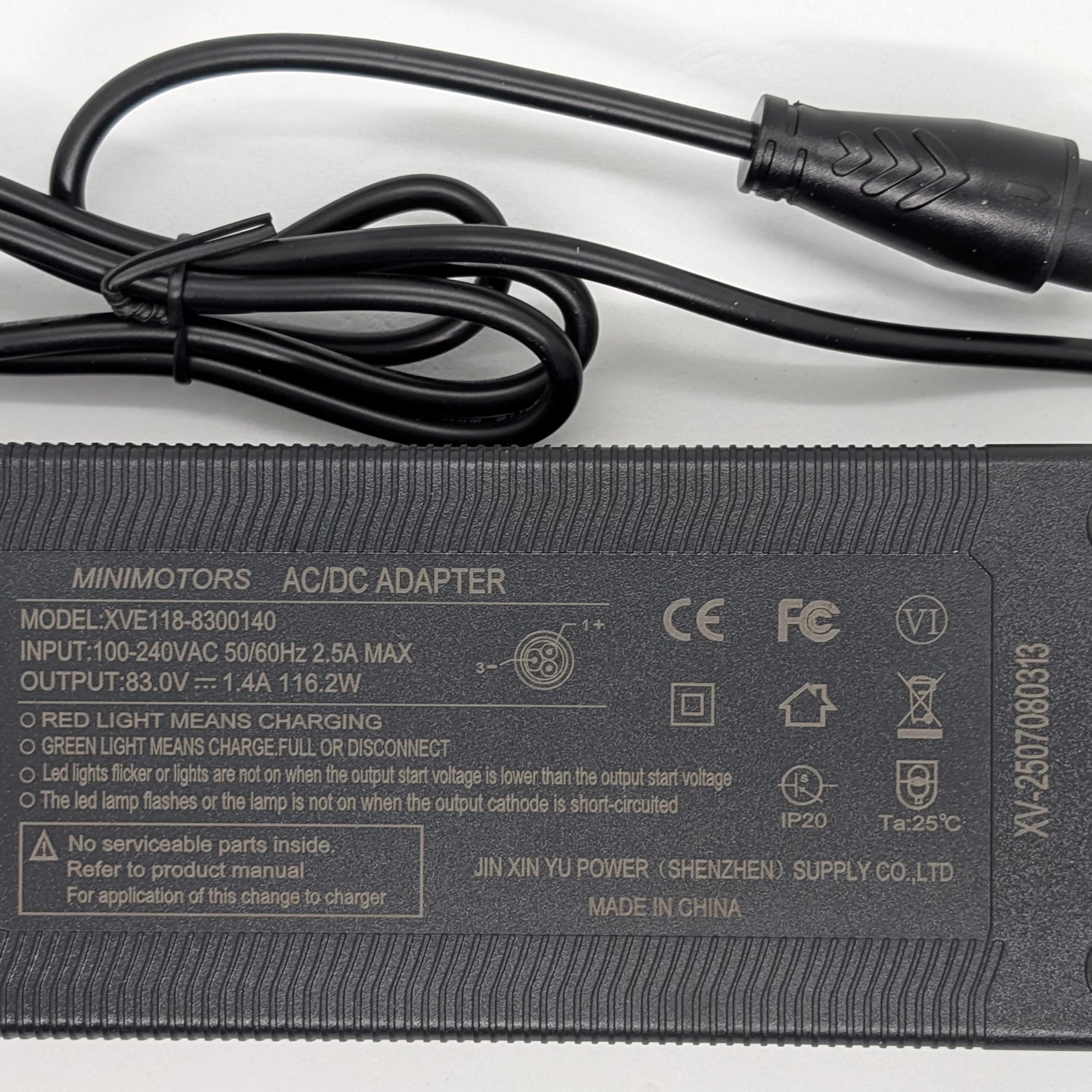

Its 83.0V / 1.4A output matches the specification printed directly on the original adapter, making it suitable for replacing the same charger supplied with compatible Dualtron scooters.
Charging Indicator
The built-in LED provides a simple charging-status indication:
-
Red: Battery charging
-
Green: Battery charged or charger disconnected
Important Charger Compatibility
Do not select a charger based solely on the scooter being described as "72V". The charger must have the correct charging voltage, connector and polarity for the scooter.
This charger has an 83.0V DC output. It should only be used with a compatible battery/charging system designed for this charging voltage.
