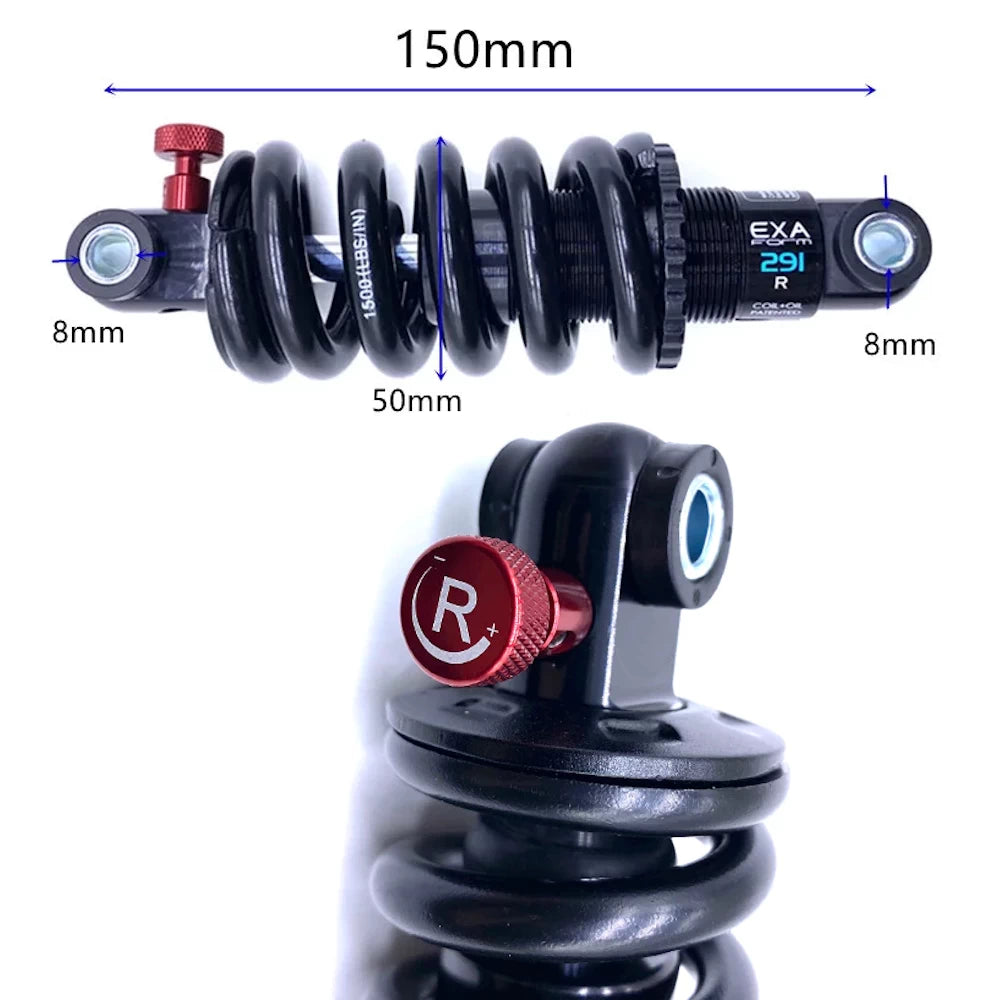

Detailed measurements showing the 150mm version of the KS EXA Form 291R shock with bolt diameters and length specifications.
Image displaying spring pound ratings for the KS EXA Form 291R coil shock with recommended rider weight ranges.
KS EXA Form 291R 1000lb Spring Option – Image of the 150mm KS EXA Form 291R shock with a spring rated at 1000 pounds.
KS EXA Form 291R Shock – 125mm vs 150mm Versions – Comparison image showcasing both the 125mm and 150mm models with dimensional differences.
Close-up view of the adjustable KS EXA Form 291R suspension shock with red rebound adjuster for precise tuning.
Top end view of the KS EXA Form 291R shock absorber with spherical bearing and CNC alloy finish, designed for optimal performance.
Side view of the KS EXA Form 291R shock absorber featuring a preload adjustment knob and integrated rebound damper, ensuring a smooth ride for e-bikes or scooters.
Close-up view of the KS EXA Form 291R shock absorber coil, highlighting the sturdy metal spring and precision threading.
KS EXA Form 291R Shock 125mm Dimensions – Close-up of the KS EXA Form 291R with 125mm dimensions and detailed measurements.
Promotional graphic highlighting the comfort, stability, and durability of the KS EXA Form 291R shocks.
Product specifications for the KS EXA Form 291R, including material, damping, and adjustment options.
Detailed measurements showing the 150mm version of the KS EXA Form 291R shock with bolt diameters and length specifications.
Image displaying spring pound ratings for the KS EXA Form 291R coil shock with recommended rider weight ranges.
KS EXA Form 291R 1000lb Spring Option – Image of the 150mm KS EXA Form 291R shock with a spring rated at 1000 pounds.
KS EXA Form 291R Shock – 125mm vs 150mm Versions – Comparison image showcasing both the 125mm and 150mm models with dimensional differences.
Close-up view of the adjustable KS EXA Form 291R suspension shock with red rebound adjuster for precise tuning.
Top end view of the KS EXA Form 291R shock absorber with spherical bearing and CNC alloy finish, designed for optimal performance.
Side view of the KS EXA Form 291R shock absorber featuring a preload adjustment knob and integrated rebound damper, ensuring a smooth ride for e-bikes or scooters.
Close-up view of the KS EXA Form 291R shock absorber coil, highlighting the sturdy metal spring and precision threading.

Suspension - KS EXA Form 291R Adjustable Shock Absorbers

$110.00
/
Tax included.
Model
  • Ships next business day

KS EXA Form 291R Adjustable Shock Absorbers

The KS EXA Form 291R coil shock absorbers are designed to enhance your ride’s comfort and stability. Engineered for recreational, youth, and MTB use, these adjustable shocks provide precise control through preload adjustment and a rebound damper. The patented foam insert ensures reliable performance by separating air from oil, preventing shock fade over time.

Key Features:

  • Adjustable: Preload and rebound damper for a custom riding experience.
  • Hydraulic Damping: Smooth, controlled suspension for various terrains.
  • CNC Alloy Build: Lightweight, durable design with anodized finish.
  • Multiple Lengths Available: 125mm, 150mm, 165mm, 185mm, 190mm.
  • Wide Rider Compatibility: Suitable for riders weighing between 65kg and 105kg, with suggested spring pound rates from 650 to 1500 lbs.

Technical Specifications:

  • Use: XC / recreational / youth / MTB
  • Material: CNC alloy with anodized finish
  • Spring Type: Coil spring
  • Bushing Type: Spherical bearing
  • Bolt Diameter: 8mm
  • Shock Body Diameter: 45.5mm
  • Weight: 450g-600g with coil

Rider Weight Recommendations:

Rider Weight Suggested Spring Rate (lbs)
65 kg 650 - 950
75 kg 800 - 1000
85 kg 850 - 1150
95 kg 1000 - 1250
105 kg 1050 - 1500



Available Lengths & Travel:

  • 125mm / 18mm travel
  • 150mm / 30mm travel
  • 165mm / 38mm travel
  • 185mm / 48mm travel
  • 190mm / 50mm travel

Length means the eye to the eye.

Each purchase includes:

  • 1x KS EXA Form 291R Shock Absorber
  • 2x Mounting Bolts

Elevate your ride with the KS EXA Form 291R adjustable shock absorbers – the ultimate solution for a smooth, stable, and customizable suspension experience.

VIDEO: Changing Rear Shocks on EMOVE Cruiser
