The QS-S4 thumb throttle and LCD display is an alternative/upgrade throttle which can be used for the Bexly 8, Bexly 9, Bexly 10 & Bexly 10X.
It can also be used for the Zero 8, Zero 8X, Zero 9, Zero 10, Zero 10X, as well as many other electric scooters, including Grace 8, Grace 9, Grace 10, Kaabo, Apollo City, Apollo (City, Explore, Light, Pro), EVOLV (City, Pro, Tour 2,0, Tour XL), and many others.
VOLTAGE can (must) be set between 48V - 60V (via the P3 setting) to match the voltage of your scooter.

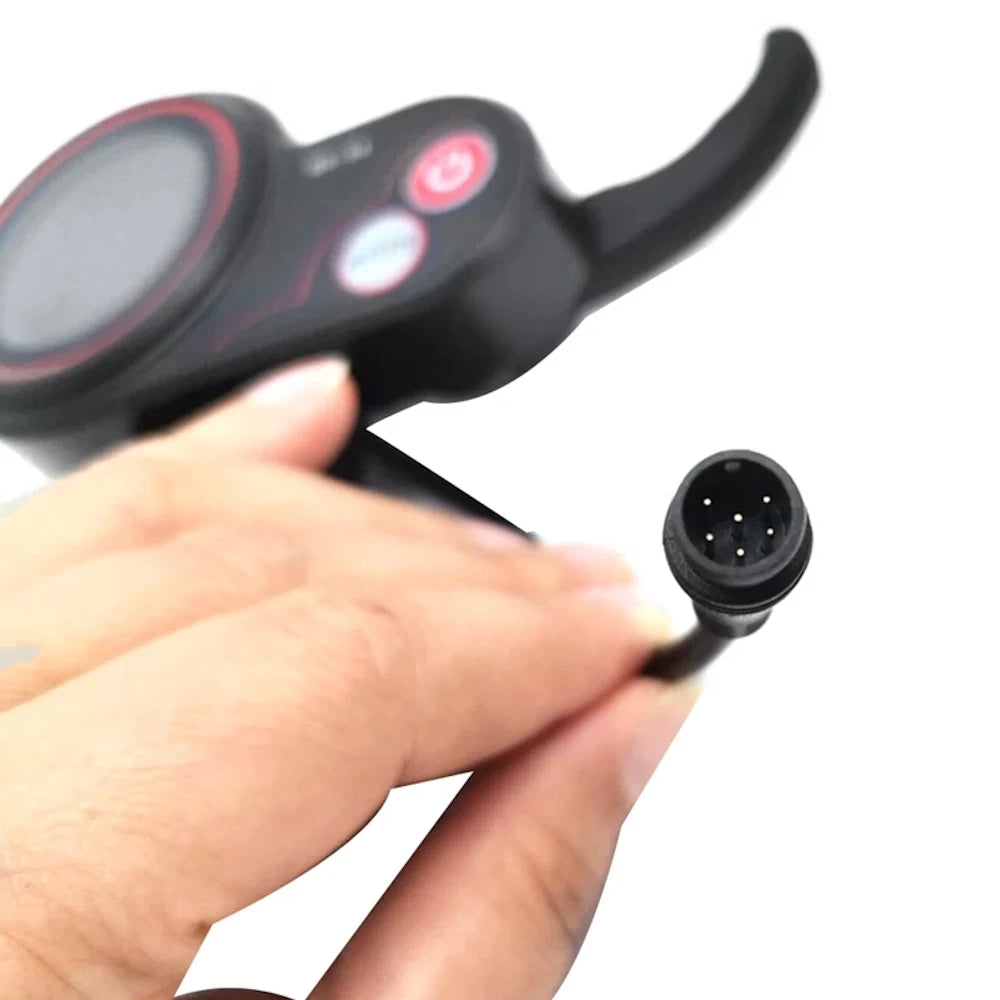

Connection Type: 6-pin round waterproof plug - MALE CONNECTOR.
USB Port
The QS-S4 Thumb Throttle also features a USB port that can supply 5V at around 500 mA to 1000 mA of current. It’s primarily intended for flashing the unit, but it could potentially be used for charging USB accessories though we do not advise it as current-thirsty USB devices risk frying your throttle unit.
How to Access Settings on the QS-S4 Thumb Throttle
- Power on your scooter.
- Hold the Mode + Power buttons (3-5 seconds) to access the P-setting menu.
- Use the Mode button to toggle through P-settings.
- Press the Power button to select the P-setting to adjust.
- Press Mode button to increase the value, and Power button to decrease the value.
- To save settings, allow the LCD display to timeout (3-5 seconds) or long press Mode + Power buttons to exit the menu.
QS-S4 Error Codes
When the LCD display controller detects an error, you’ll get the triangle and exclamation mark symbol, and it will display the fault code just above the battery life display.
QS-S4 Error Code | Meaning |
2 | Brake sensor |
6 | Battery under-voltage |
7 | Motor fault |
8 | Motor/Hall sensor |
9 | Controller fault |
10 | Controller RX fault |
11 | Controller TX fault |
12 | BMS communication error |
13 | Headlight error |
