67.2V 4A Fast Charger for 60V Electric Scooters – GX16-3 – RCM Certified
- Ships next business day
- In stock, ready to ship
67.2V 4A Fast Charger for 60V Electric Scooters – GX16-3 Universal Wiring – RCM Certified (AU Plug)
High-output 67.2V 4A fast charger for 60V lithium-ion electric scooters using a GX16-3 charging connector.
This RCM Certified charger uses EcoMotion’s versatile GX16-3 universal wiring configuration:
Pin 1 = Positive (+)
Pin 2 = Negative (–)
Pin 3 = Negative (–)
This allows the charger to work with the two common GX16-3 charging configurations used across 60V electric scooters:
- Standard GX16-3: Pin 1 Positive / Pin 3 Negative / Pin 2 unused
- Alternative GX16-3: Pin 1 Positive / Pin 2 Negative / Pin 3 unused
Because Pins 2 and 3 are both connected to the same negative output, the charger can support either configuration without changing polarity.
The 4A output provides substantially faster charging than common 2A and 2.5A chargers, provided the scooter and battery management system are rated to accept a 4A charging current.

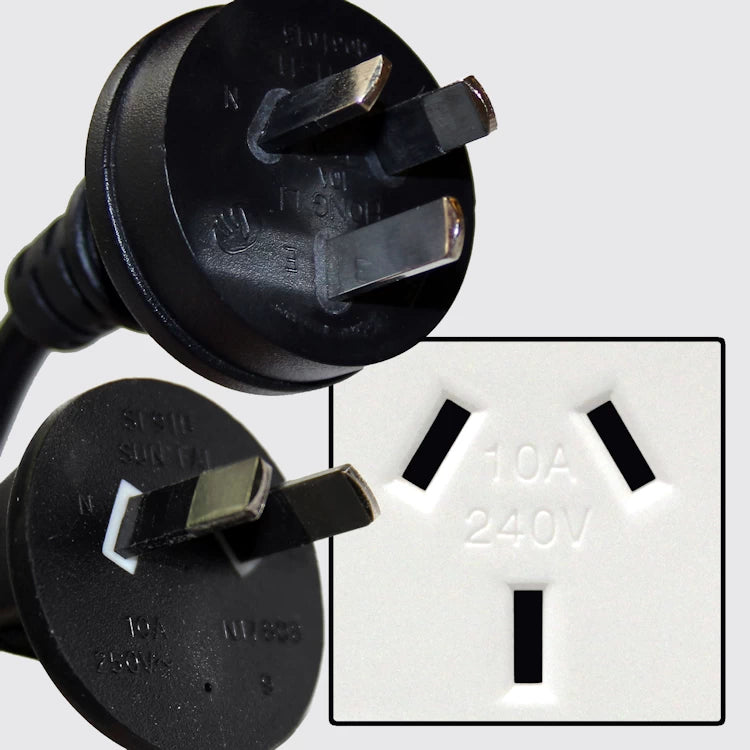

Designed for Australian use with an RCM-approved Australian mains connection, the charger also features a removable IEC 60320 C14 three-pin AC inlet, providing a more secure and serviceable connection than permanently attached mains leads.
US and UK mains lead options are also available.
Specifications
| Specification | Details |
|---|---|
| Battery Voltage | 60V nominal lithium-ion |
| Charger Output | 67.2V DC |
| Charging Current | 4.0A |
| Maximum Output Power | Approx. 269W |
| Input | 100–240V AC, 50/60Hz, 2.5A |
| DC Connector | GX16-3 female |
| GX16 Pin 1 | Positive (+) |
| GX16 Pin 2 | Negative (–) |
| GX16 Pin 3 | Negative (–) |
| AC Input Connector | IEC 60320 C14, 3-pin |
| Australian Plug | Included with Australian version |
| Other Plug Options | US / UK |
| Indicator | Red = Charging; Green = Full / Disconnected |
| Charger Model | GS-EBC67.2V4A |
| Manufacturer / Producer | Wuhan Huixin Zhongmao Import and Export Co., Ltd |
| Certifications / Compliance | RCM & CE |
| RCM Approval No. | CCS-22099-EA |
| Application | Indoor use |
| Battery Chemistry | Li-ion |
| Colour | Black |
GX16-3 Universal Wiring
A major advantage of this charger is its dual-negative GX16-3 configuration.
Standard Scooter Wiring
Many scooters use:
Pin 1 (+) → Positive
Pin 3 (–) → Negative
Pin 2 → Not connected
The charger supplies power through Pins 1 and 3 normally.
Alternative Wiring
Some scooters—including models from EMOVE, Teverun, Blade and KingSong - use:
Pin 1 (+) → Positive
Pin 2 (–) → Negative
Pin 3 → Not connected
The charger instead supplies power through Pins 1 and 2.
Why the Charger Works With Both
Pins 2 and 3 are connected to the same negative output inside the charger. They are therefore at the same electrical potential.
The scooter simply uses whichever negative pin its charging port is wired to; the other negative pin has no effect where the corresponding scooter socket contact is not connected.
This means the charger maintains:
Pin 1 = Positive
Pins 2 & 3 = Negative
and does not reverse the charging polarity.
Compatibility
Apollo
- Phantom V2
Bexly
- Blackhawk PRO
- Blackhawk PRO MAX
Dualtron
- Dualtron Ultra
- Dualtron Eagle
Dragon
- Dragon Predator
EMOVE
- EMOVE Cruiser V2 Dual / 60V
Inokim
- OXO
Kaabo
- Wolf Warrior
- Mantis King GT
- Mantis 10 Duo V2
- Mantis Pro
KingSong
- KingSong N14 / KSE
- KingSong KS-16S
- KingSong N12 Pro
Teverun
- Teverun Blade
- Teverun Fighter 11
- Teverun Fighter 11+
Vsett
- Vsett 10 Apex
- Vsett 10+
- VSett 11+
Zero
- Zero 10X
It may also suit other 60V lithium-ion electric scooters requiring a 67.2V charger with a GX16-3 connector, subject to battery charging-current specifications.
Important: Always confirm your scooter uses a 60V nominal / 67.2V full-charge battery and that its battery/BMS can accept a 4A charging current before use.
4A Fast Charging
Compared with a conventional 2A charger, a 4A charger can significantly reduce charging time where the battery is designed to accept the higher current.
For example, under ideal conditions a 4A charger can supply approximately twice the charging current of a 2A charger. Actual charging time will depend on battery capacity, state of charge, BMS limitations and the constant-voltage phase near full charge.
IEC C14 AC Power Input
Rather than using a permanently attached mains cable, this charger incorporates a standard IEC 60320 C14 inlet.
Benefits include:
- Secure three-pin connection
- Replaceable mains power lead
- Easy Australian, UK or US lead selection
- Less stress on the charger body during storage
- Easier replacement if the mains cable becomes damaged
- Widely available IEC C13-to-wall-plug cables
Regulatory Compliance Mark (RCM)
The Regulatory Compliance Mark (RCM), a trademark of Australian regulatory authorities, ensures this charger meets Australian electrical safety standards. Never compromise safety—only use chargers with the RCM tick mark to protect yourself and your scooter.
