Suspension - KS EXA Form 291R Adjustable Shock Absorbers

$110.00
/
Tax included.
Model
  • Ships next business day
  • Low stock - 2 items left
  • Backordered, shipping soon

KS EXA Form 291R Adjustable Shock Absorbers

The KS EXA Form 291R coil shock absorbers are designed to enhance your ride’s comfort and stability. Engineered for recreational, youth, and MTB use, these adjustable shocks provide precise control through preload adjustment and a rebound damper. The patented foam insert ensures reliable performance by separating air from oil, preventing shock fade over time.

Key Features:

  • Adjustable: Preload and rebound damper for a custom riding experience.
  • Hydraulic Damping: Smooth, controlled suspension for various terrains.
  • CNC Alloy Build: Lightweight, durable design with anodized finish.
  • Multiple Lengths Available: 125mm, 150mm, 165mm, 185mm, 190mm.
  • Wide Rider Compatibility: Suitable for riders weighing between 65kg and 105kg, with suggested spring pound rates from 650 to 1500 lbs.

Technical Specifications:

  • Use: XC / recreational / youth / MTB
  • Material: CNC alloy with anodized finish
  • Spring Type: Coil spring
  • Bushing Type: Spherical bearing
  • Bolt Diameter: 8mm
  • Shock Body Diameter: 45.5mm
  • Weight: 450g-600g with coil

Rider Weight Recommendations:

Rider Weight Suggested Spring Rate (lbs)
65 kg 650 - 950
75 kg 800 - 1000
85 kg 850 - 1150
95 kg 1000 - 1250
105 kg 1050 - 1500



Available Lengths & Travel:

  • 125mm / 18mm travel
  • 150mm / 30mm travel
  • 165mm / 38mm travel
  • 185mm / 48mm travel
  • 190mm / 50mm travel

Length means the eye to the eye.

Each purchase includes:

  • 1x KS EXA Form 291R Shock Absorber
  • 2x Mounting Bolts

Elevate your ride with the KS EXA Form 291R adjustable shock absorbers – the ultimate solution for a smooth, stable, and customizable suspension experience.

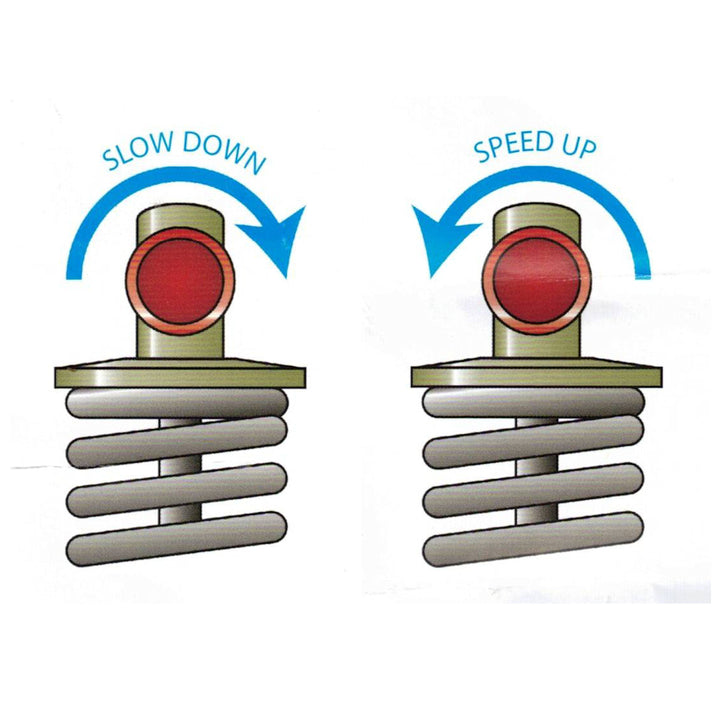

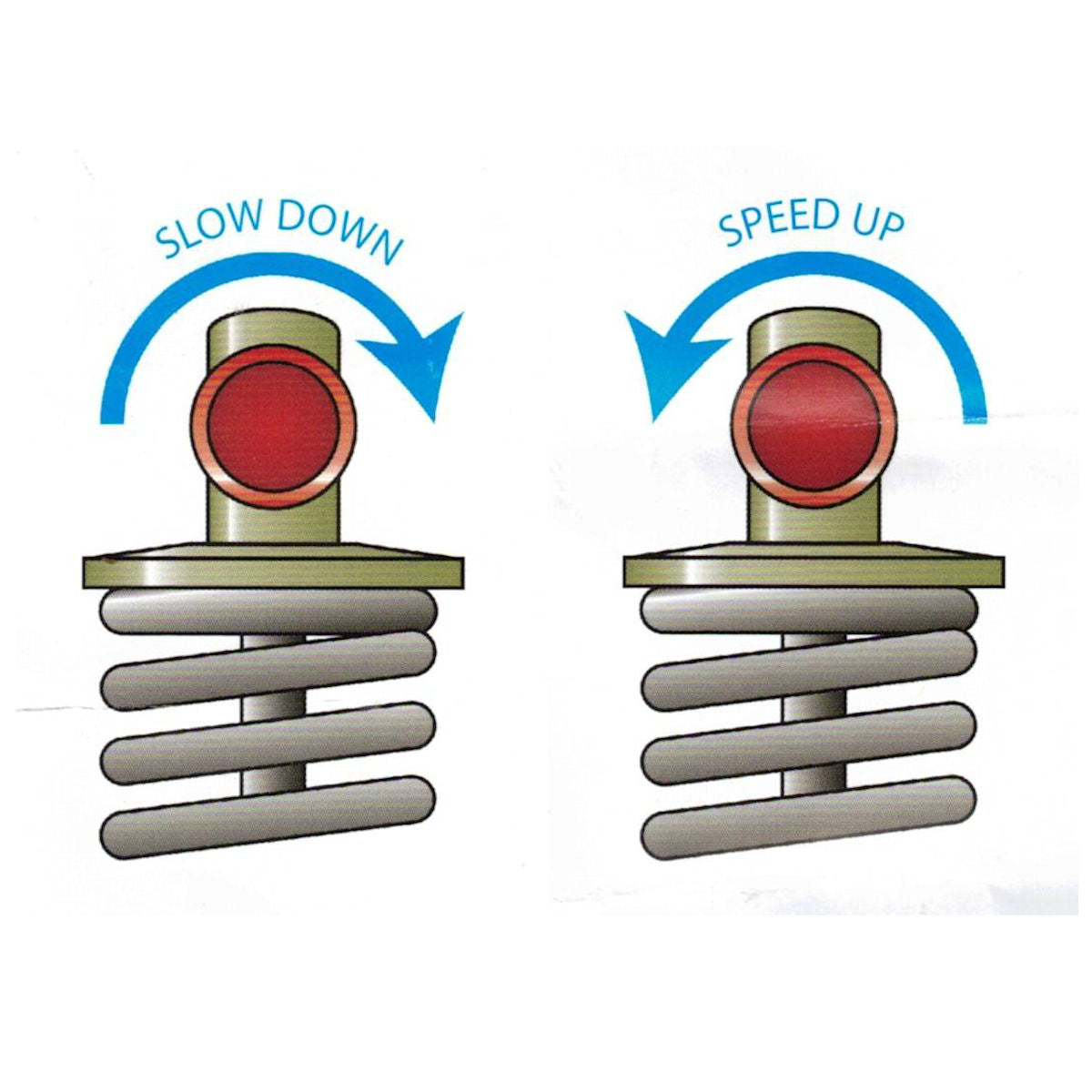

Rebound Damping Adjustment Instructions

Use the red rebound adjuster knob to fine tune the return speed (rebound damping) of your EXA Form shock. Turn the adjuster clockwise to slow down return speed and counter-clockwise to speed up the return speed.

MANUFACTURER'S NOTE - Kindshock.com.cn

This shock is not intended to be used for aggressive riding such as freeride, downhill or jumping. Improper use may result in injury or damage to the shock which will void the warranty.
